ZFIN Image: Eeza et al., 2023, Fig 3


Figure Caption

Fig 3

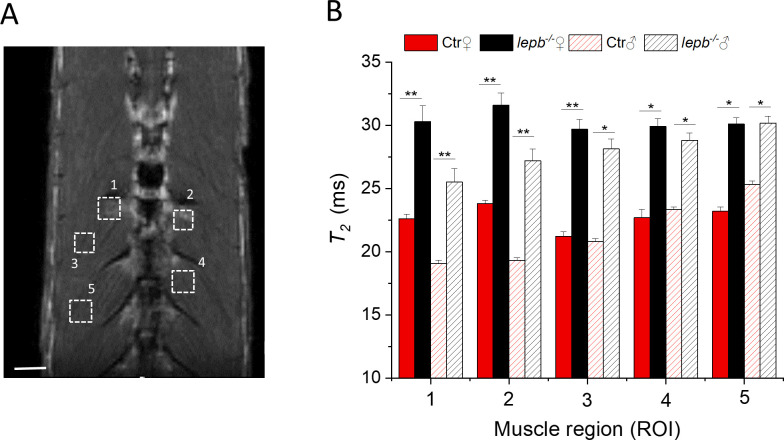

T₂ relaxation time measurements in various muscle regions of control (Ctr) and lepb-deficient (lepb^-/-) adult zebrafish.

(A) Anatomical T₂ –weighted MR coronal slices of an adult zebrafish, showing various muscle regions for T₂ measurements. Scale bar, 500 μm. (B) T₂ relaxation time values were measured in five different muscle regions of female (♀) and male (♂) control (Ctr) and leptin-deficient (lepb^-/-) zebrafish. The reliability test of T₂ measurements was performed by Bonferroni test using a 1-way analysis of variance (ANOVA) to accomplish pairwise comparisons of the data. At the 0.05 level, the T₂ population means of lepb^-/- and Ctr are significantly different for both male and female zebrafish. Data represent the mean T₂ in ms ± standard deviation (SD) (Error bars) (95% C.I.); n = 6 per group; *p<0.05, **p<0.01.
