ZFIN Image: Botos et al., 2023, Figure 1


Figure Caption

Figure 1

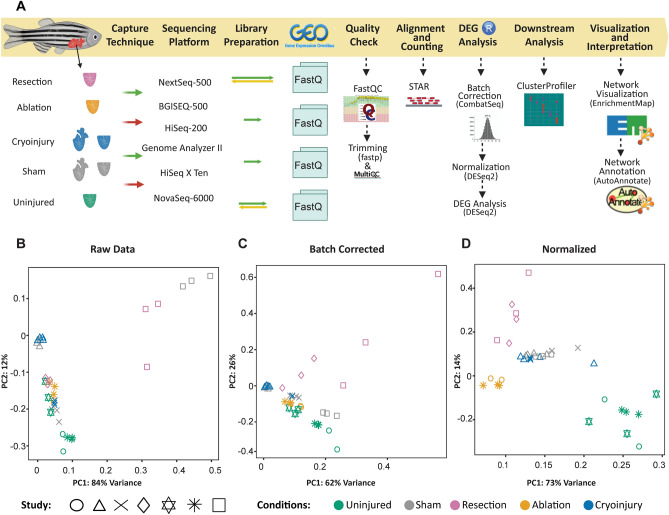

Transcriptomic meta-analysis of the cardiac regenerative response upon distinct types of injuries. (A) Workflow of the process used to analyze the data. Selected datasets differed in conditions of the transcriptomic data such as the capture techniques, sequencing platforms and reads structure. Data were downloaded from GEO and the processing steps to find the differentially expressed genes were performed. This was followed by downstream analysis to interpret the results. (B) PCA plots of the raw data before any processing. (C) Batch corrected, after removing the platform sequencing variable giving the highest batch effect. (D) DESeq2 normalized data.
