Figure Caption

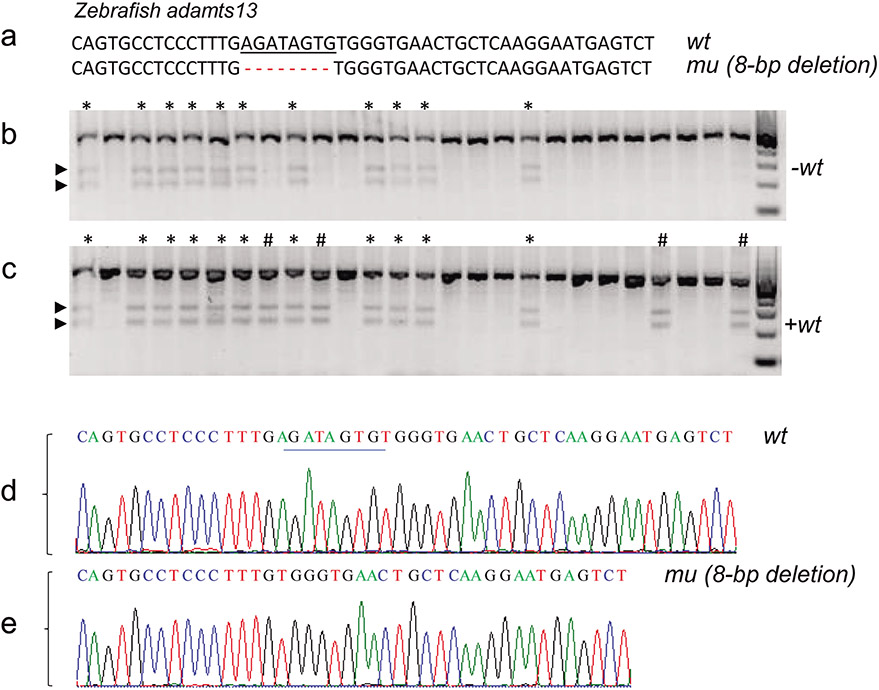

Fig. 2
Genotyping wild-type, heterozygous, and homozygous 8 bp-deletion mutation in zebrafish adamts13.
(a) The expected wild type (wt) and mutant (mu) (8-bp deletion) sequences of zebrafish adamts13. (b–c) are the T7E1 digestion patterns of the PCR products in the absence (−wt) and presence (+wt) of the wt PCR product, respectively. Here, * and # indicate the presence of the cleavage bands (arrowheads) in the absence and presence of a wt sequence, respectively. (d–e) show the Sanger sequence tracings of wt and mu (−8 bp), respectively.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ J Clin Transl Pathol
