Fig. 6

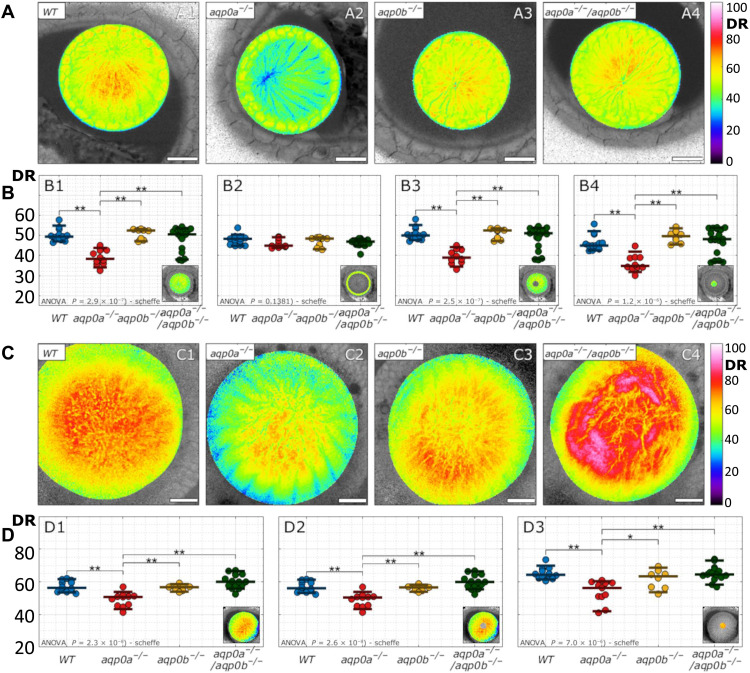

DR in anterior and posterior planes of Aqp0 mutant lenses.

(A) Examples of DR images were taken at anterior planes (10 μm from the anterior pole) of lenses at 4 dpf. Scale bars, 20 μm. (B) Mean DR of the whole anterior lens plane (B1), the epithelium (B2), fiber cells (B3), and sutural regions (B4) as indicated by the insets (n = 50). (C) Examples of DR images taken at posterior planes of lenses (75 to 85 μm from the anterior pole). Scale bars, 20 μm. (D) Mean DR of the whole posterior pole (D1), fiber cells (D2), and sutural region (D3) as indicated by the insets (n = 46). See table S3 for a summary of n numbers. Statistical significance was denoted with * at a significance level P < 0.05 and ** at a significance level P < 0.005.
