Figure Caption
Figure 1

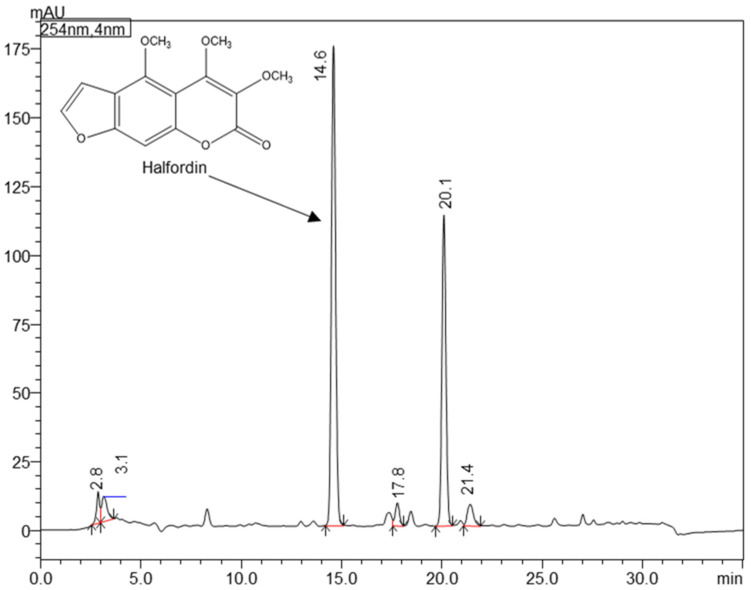

HPLC-DAD chromatogram of the H. kendack methanol leaf extract with the main compound halfordin marked (detection 254 nm; Phenomenex Gemini NX-C18 110A (250 mm × 4.6 mm, 5 μm, Warsaw, Poland); 1 mL/min, gradient of water and methanol. Peak rf = 14.6: halfordin, peak rf = 20.1: unidentified alkaloid.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Int. J. Mol. Sci.
