Figure Caption
Figure 4

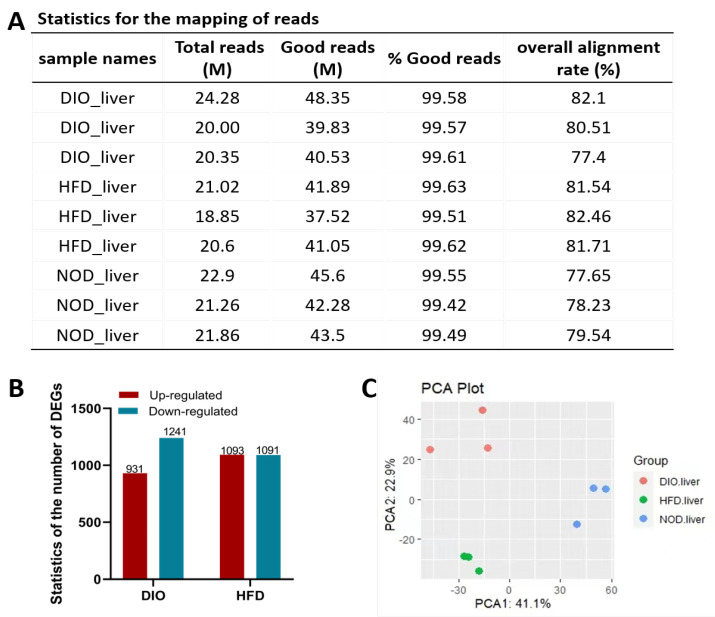

Identification of DEGs induced by HFD and DIO in zebrafish. (A) Statistics for the mapping of reads in three groups. (B) The number of DEGs between groups of different diets (fold change ≥ 1.5 and p-value ≤ 0.05). (C) The principal component analysis (PCA) of differentially expressed genes in three groups.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Int. J. Mol. Sci.
