Figure 7

ID
ZDB-IMAGE-230217-156
Publication
Li et al., 2023 - Effects of Nutritionally Induced Obesity on Metabolic Pathways of Zebrafish
All Figures
Figures for Li et al., 2023
Figure Caption

Figure 7

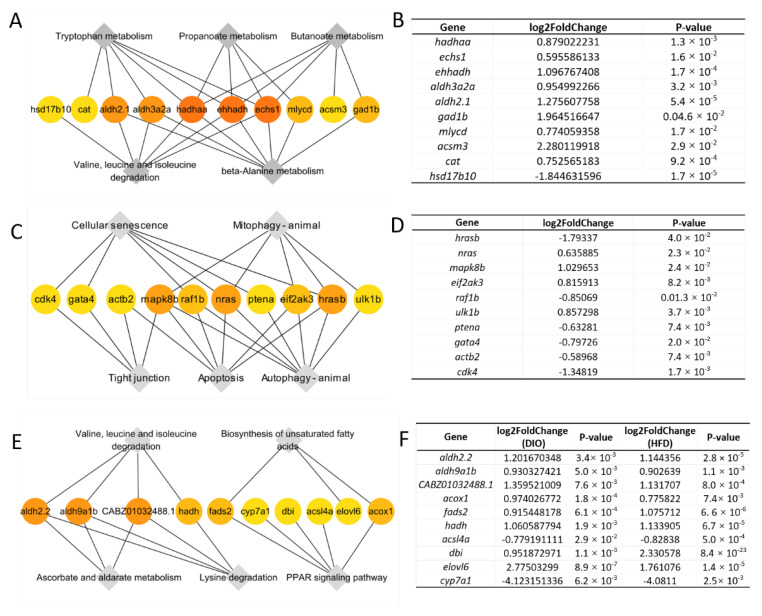

Hub genes within KEGG pathways. (A) Networks of 10 hub genes mapped to top 5 pathways in group (a). (B) The fold changes of hub genes in group (a). (C) Networks of 10 hub genes mapped to top 5 pathways in group (b). (D) The fold changes of hub genes in group (b). (E) Networks of 10 hub genes mapped to top 5 pathways in group (c). (F) The fold changes of hub genes in group (c).

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
