ZFIN Image: Adane et al., 2021, Fig. 7


Figure Caption

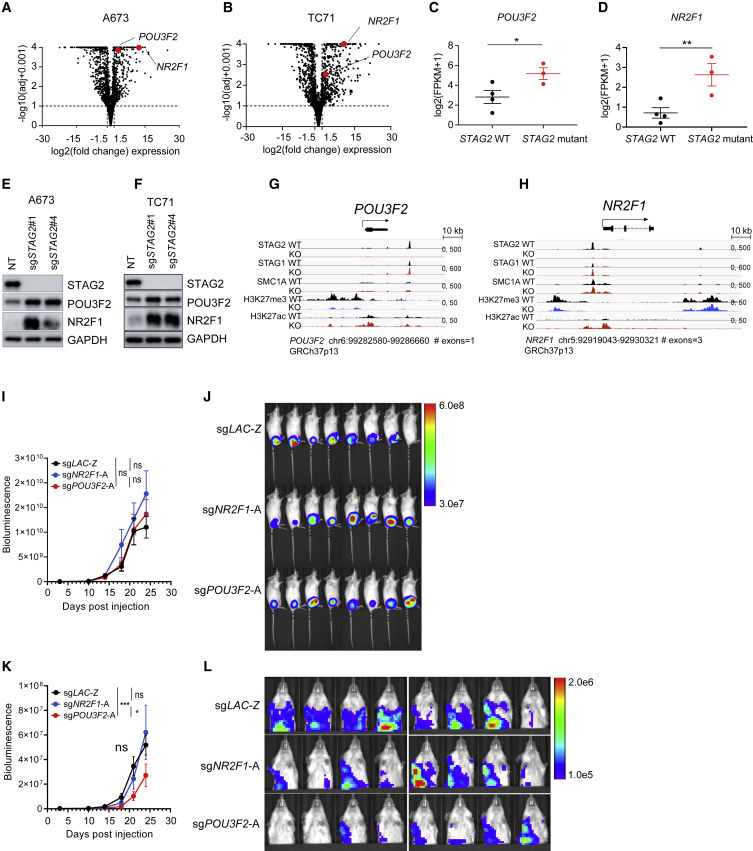

Fig. 7 The neurodevelopmental transcription factor POU3F2 modulates the metastatic potential of STAG2 KO Ewing sarcoma cells

(A and B) Volcano plot depicting the transcriptional changes induced by STAG2 KO versus control in (A) A673 and (B) TC71 cells. POU3F2 and NR2F1 are highlighted in red. Significance cutoffs: |log₂(FC)| ≥ 1.5, adjusted p ≤ 0.10.

(C and D) Scatter dot plot depicting the mean ± SEM mRNA log₂(FPKM [fragments per kilobase per million] + 1) expression of (C) POU3F2 and (D) NR2F1 in three STAG2 mutant tumors versus the top four STAG2 WT tumors with highest STAG2 expression from Crompton et al. (2014) data. Mann-Whitney non-parametric t test, ^∗∗p < 0.001, ^∗p < 0.05.

(E and F) Validation of an increase in POU3F2 and NR2F1 protein levels in (E) A673 and (F) TC71 cells clonally selected for STAG2 loss.

(G and H) Integrated genomics viewer track showing SA2, SA1, SMC1, H3K27me3, and H3K27ac signals at the (G) POU3F2 and (H) NR2F1 locus in control and STAG2 KO A673 cells.

(I) Quantification of bioluminescence signal for whole body. Line graph represents mean ± SEM, n = 8 per group. Two-way ANOVA; ns, not significant.

(J) Bioluminescence images of mice described in (I).

(K) Quantification of bioluminescence signal for upper thoracic cavity after blocking the primary tumor at the lower abdomen. Line graph represents mean ± SEM, n = 8 per group. Two-way ANOVA, ^∗∗∗p < 0.001, ^∗p < 0.05; ns, not significant.

(L) Bioluminescence images of mice described in (K).

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Cancer Cell, 39, Adane, B., Alexe, G., Seong, B.K.A., Lu, D., Hwang, E.E., Hnisz, D., Lareau, C.A., Ross, L., Lin, S., Dela Cruz, F.S., Richardson, M., Weintraub, A.S., Wang, S., Iniguez, A.B., Dharia, N.V., Conway, A.S., Robichaud, A.L., Tanenbaum, B., Krill-Burger, J.M., Vazquez, F., Schenone, M., Berman, J.N., Kung, A.L., Carr, S.A., Aryee, M.J., Young, R.A., Crompton, B.D., Stegmaier, K., STAG2 loss rewires oncogenic and developmental programs to promote metastasis in Ewing sarcoma, 827-844.e10, Copyright (2021) with permission from Elsevier. Full text @ Cancer Cell
