ZFIN Image: Kim et al., 2022, Figure 3


Figure Caption

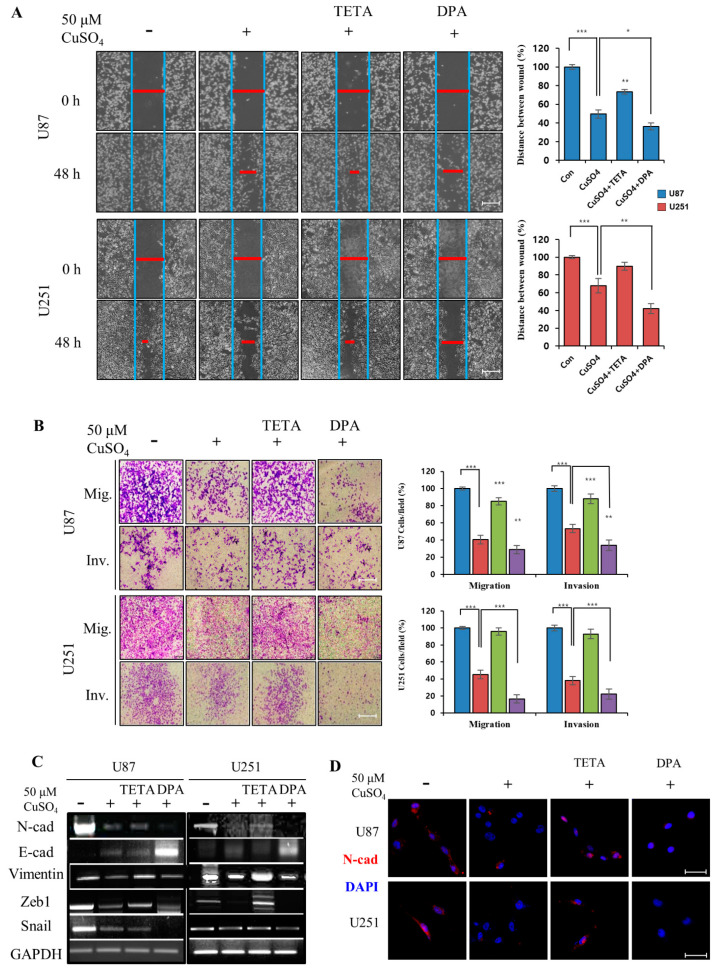

Figure 3

(A) Wound healing capacity of U87 and U251 cells treated with 50 μM of CuSO₄ and 100 μM chelators. Scale bars: 200 µm. (B) The migration/invasion assay indicating that treatment of CuSO₄ and DPA was highly effective in GBM cell migration and invasion in both cell lines. Scale bars: 200 µm. (C) The expression of EMT regulators and transcription factors in GBM cells using RT-PCR. (D) Immunofluorescent analysis of N-cadherin, after treatment with CuSO₄ with chelators in GBM cells. Scale bars: 100 µm. Data represent mean ± SD of three independent experiments using two-tailed t-test. * p < 0.05, ** p < 0.01, *** p < 0.001.
