Figure 4

ID
ZDB-IMAGE-221218-13
Source
Figures for Printzi et al., 2022
Figure Caption

Figure 4

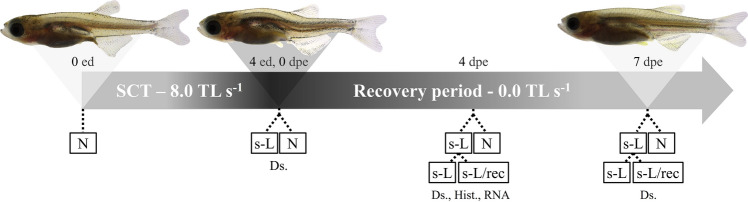

Basic experimental design. Juvenile zebrafish with normal external morphology were subjected to a swimming challenge test (SCT) for the induction of haemal lordosis. The severe lordotic (s-L) and normal (N) fish were monitored for a week under almost 0.0 TL s−1. Lordosis recovery (s-L/rec) was examined by means of double staining for bone and cartilage (Al.), histology (Hist.) and gene expression analysis (RNA). ed, exercise days. dpe, days post exercise.
