Figure Caption
Fig. 2

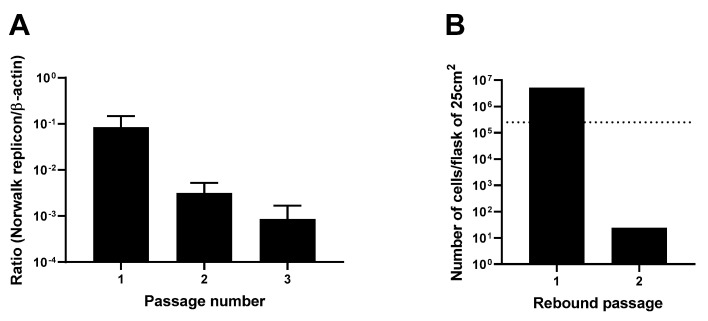

Clearance of the HuNoV GI.1 replicon from HGT cells by compound 4. (A) Clearance phase: cells were treated for three consecutive passages with compound 4 (10 µM) without G418. (B) Rebound phase: cells from the clearance phase were placed under selective pressure with G418, without compound 4. The dotted line represents the minimum number of HGT cells required for the next passage.
