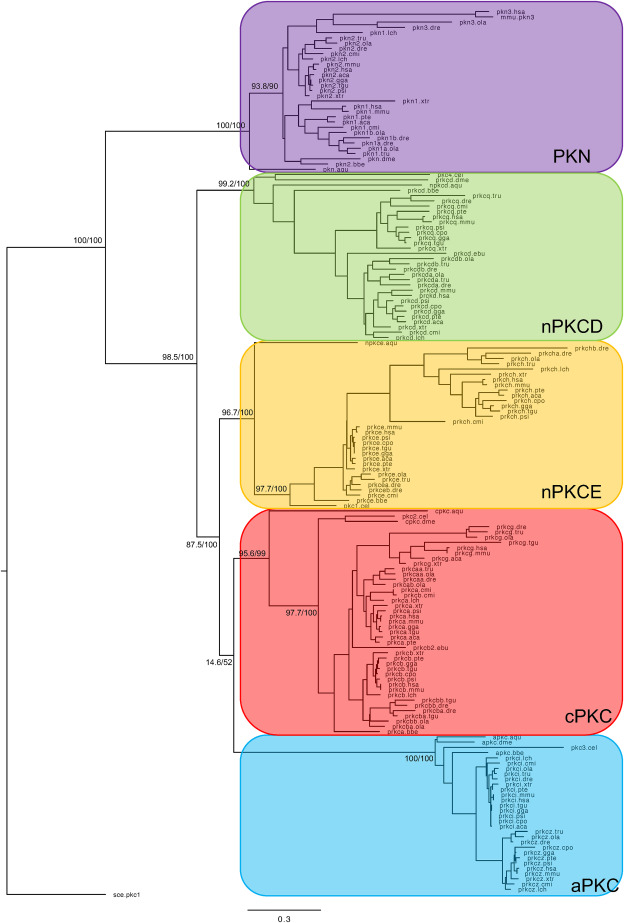

Fig. 2 Fig. 2. Phylogenetic maximum likelihood tree of the PKC genes, rooted with the yeast PKC1 gene. The tree was generated using the kinase domain of each protein kinase. Each color corresponds to one PKC gene subfamily. Each subfamily contains a sequence from Amphimedon queenslandica, C. elegans and D. melanogaster. The tree topology is supported by a nonparametric Ultra-Fast Bootstrap (UFBoot) analysis. The complete tree values in Newick format are supported as supplementary data.
