Fig. 6

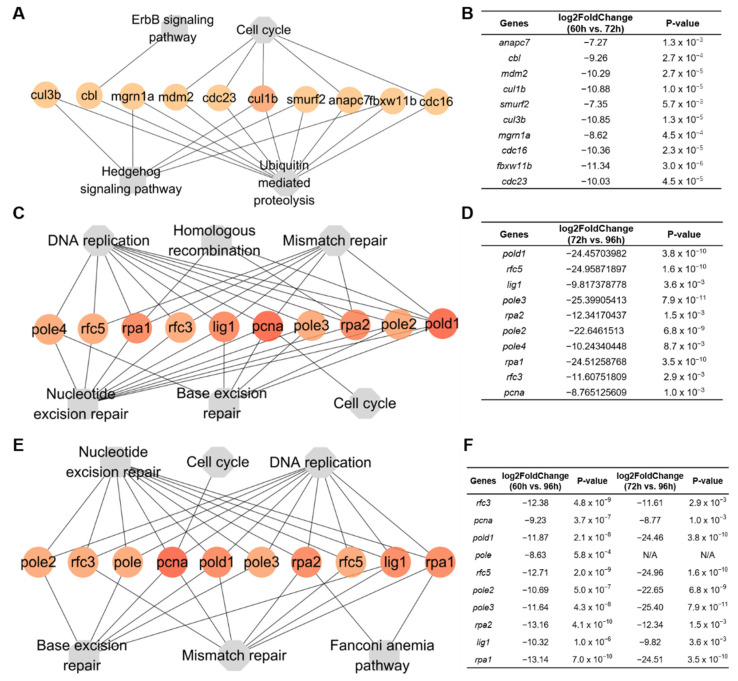

Hub genes within KEGG pathways. (A) Networks of 10 hub genes mapped to top four pathways in groups a and b from 60 to 72 hpf. (B) The fold changes of hub genes in groups a and b. (C) Networks of 10 hub genes mapped to top 6 pathways from 72 to 96 hpf in groups f and g. (D) The fold changes of hub genes in groups f and g. (E) Networks of 10 hub genes mapped to top 6 pathways from 60 to 96 hpf in groups c, f, and g. (F) The fold changes of hub genes in groups c, f, and g.
