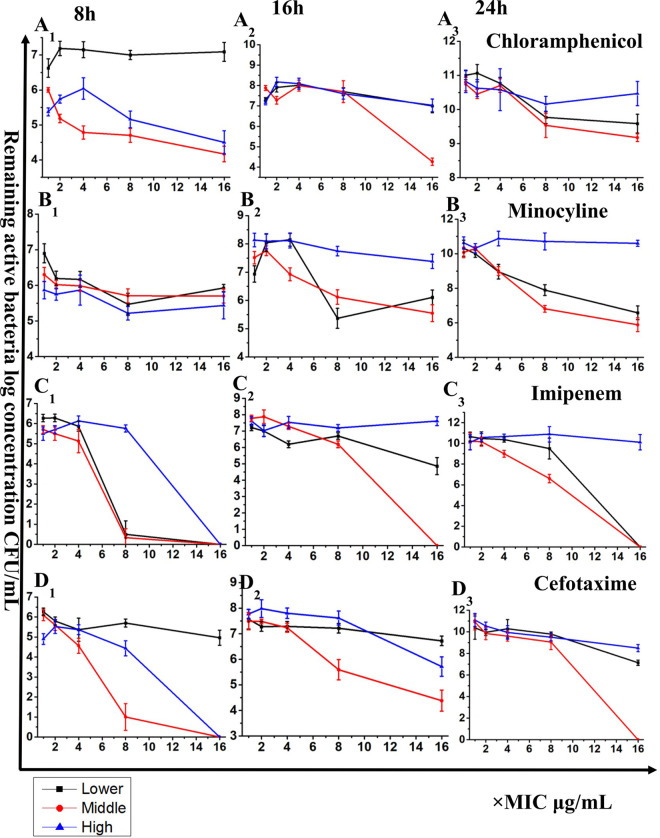

Effect of phage dose on PAS between YC#06 and antibiotic combination. The y axis represents the active bacteria amount, which is calculated by log (CFU/mL). The x axis represents the effective antibiotic concentration. “×MIC” shows that the effective antibiotic concentrations used are at n times the MIC. MICs were chosen according to the Clinical and Laboratory Standards Institute guidelines. Lower, phage dose at a low MOI (0.01); middle, phage dose at a middle MOI (1); high, phage dose at a high MOI (100).
