Figure Caption
Fig. 13

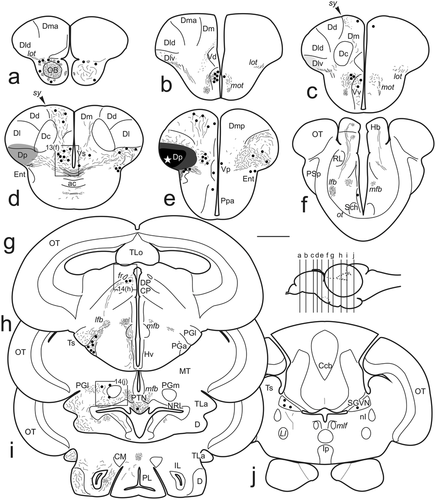

(a–j) Schematic drawings of transverse sections of the zebrafish brain showing structures labeled after application of DiI to the posterior zone of the pallium (Dp) using a ventrolateral approach. The level of sections is indicated in the lateral view of the brain. Black circles, retrogradely labeled cells. Small dots and lines, labeled fibers. Shaded areas in (c–e) represent the diffusion area of the tracer from the application point (white star in e). Scale bar for sections: 500 μm
