Figure 4

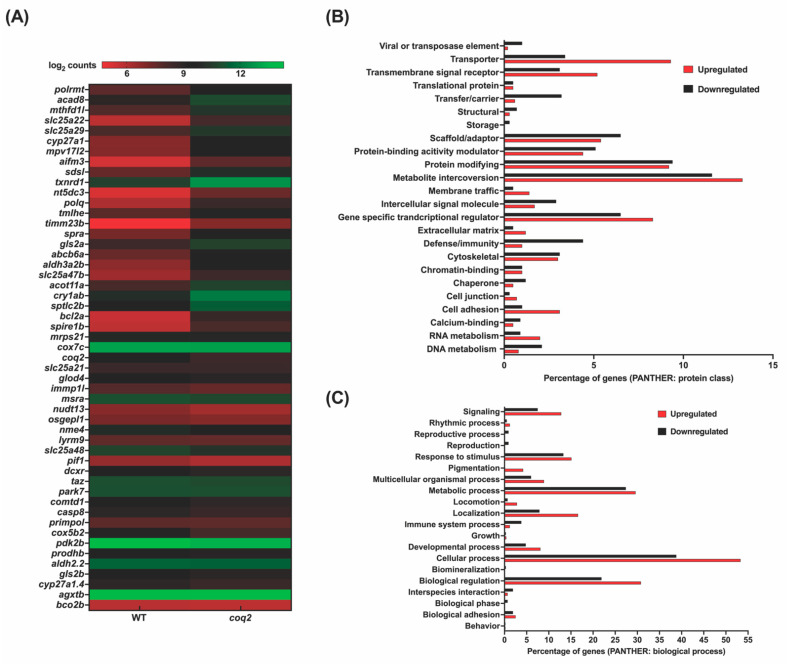

RNAseq analysis of coq2 mutants: (A): Heat map visualization of expression of zebrafish orthologs for human MitoCarta genes. The gradient color scale represents the log₂CPM value obtained for each of the zebrafish mitochondrial orthologs in the two datasets. (B,C): PANTHER classification for all the differentially expressed genes in the homozygous mutant according to protein class (B) and biological process (C). Each histogram represents the percentage of genes falling in each of the categories.
