Figure 4

ID: ZDB-IMAGE-220730-28
Source: Figures for Petersen et al., 2022


Figure Caption

Figure 4

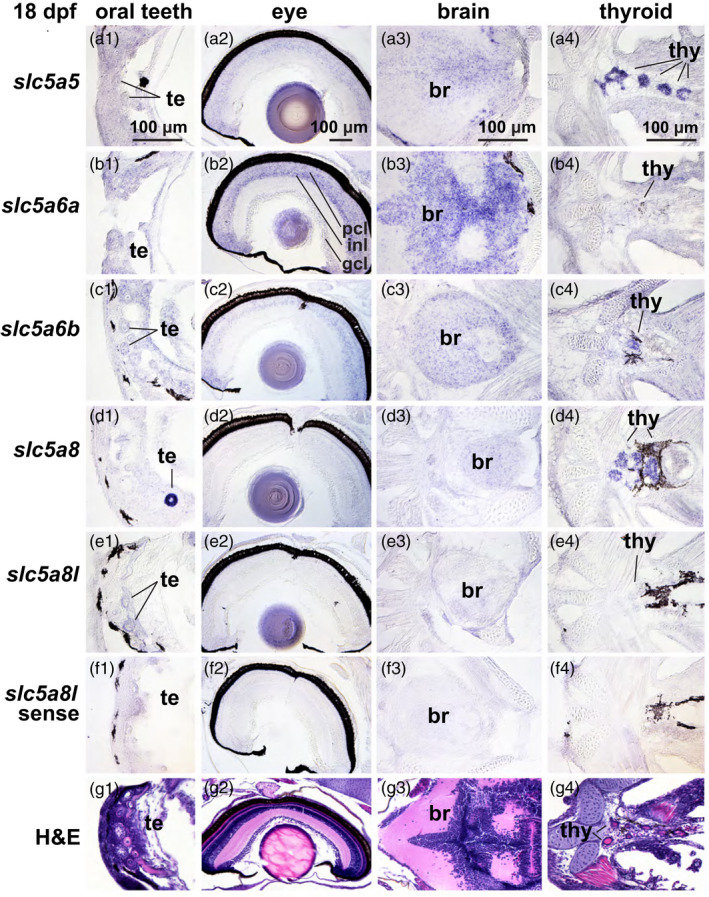

Expression patterns of slc5a5 clade genes in the head of 18 dpf threespine stickleback. In situ hybridization of mRNA expression of (a) slc5a5, (b) slc5a6a, (c) slc5a6b, (d) slc5a8, (e) slc5a8l, and (f) slc5a8l sense strand as control, and (g) H&E‐stained histological sections showing teeth, eye, brain, and thyroid of larval stickleback. Imaged at 40X. br, brain; gcl, ganglion cell layer; inl, inner nuclear layer; pcl, photoreceptor cell layer; te, teeth; thy, thyroid follicles
