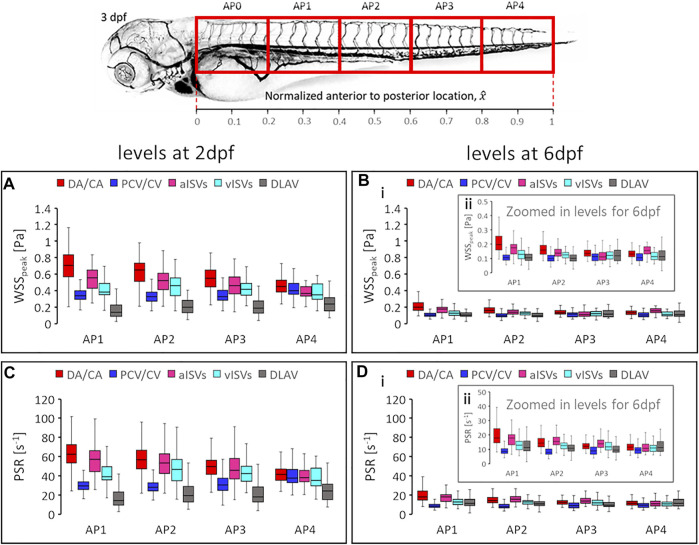

Developmental changes in magnitude levels of shear rate related quantities. The WSSpeak and its hierarchy order among vessel types are shown for 2 dpf (A) and 6 dpf (Bi,ii). The PSR and its hierarchy order among vessel types are shown for 2 dpf (C) and 6 dpf (Di,ii). Box plots in graphs show the median and the first (Q1) and third (Q3) quartile levels of the hemodynamic quantity for the pooled zebrafish data. The whisker bars represent the maximum and minimum ranges of the data that lie within 1.5 times of the interquartile range (IQR = Q3 − Q1) beyond Q1 and Q3.
