Fig. 7

ID
ZDB-IMAGE-220629-12
Antibodies
Source
Figures for Ding et al., 2022
Figure Caption

Fig. 7

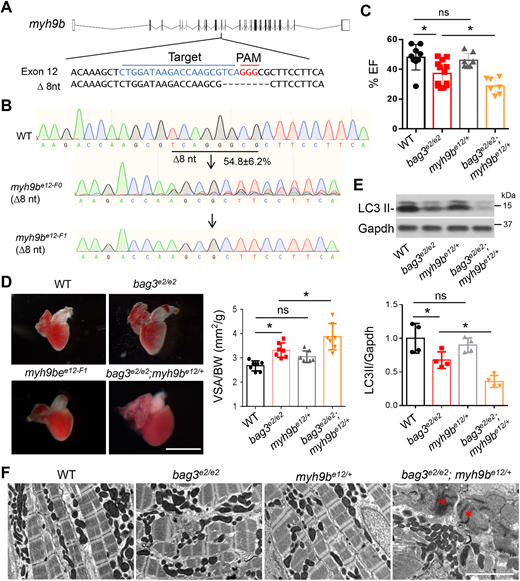

The stable myh9b heterozygous mutant deteriorated bag3 cardiomyopathy at adult stage. (A) Schematic of the predicted MMEJ-inducing myh9b genetic lesion of 8-nucleotides generated by injection of an sgRNA targeting sequences within the 12th exon. Dashed lines indicate an 8-nucleotide-long deletion. (B) Chromographs illustrating the sequences of the wild-type myh9b and the mutant alleles with the predicted 8-nucleotide-long deletion in F0 and F1 fish. (C) Quantification of cardiac function. Ejection fraction (EF) (in %) measured by using echocardiography in bag3e2/e2;myh9be12/+ double-mutant fish compared to single-mutant and WT control fish at 6 months; n=7-11, one-way ANOVA. (D) Left panel: Representative images of isolated hearts from fish as indicated. Right panel: Quantification of ventricular surface area (VSA) normalized to the body weight (BW) of fish at 6 months; n=7, one-way ANOVA. (E) Western blotting (top) and quantification LC3 II protein levels (bottom) of hearts from bag3e2/e2;myh9be12/+ double-mutant fish, bag3e2/e2, myh9be12/+ or WT control fish at 6 months. Levels of Gapdh were used as control. n=4, one-way ANOVA. (F) TEM images of bag3e2/e2;myh9be12/+ double-mutant fish hearts, bag3e2/e2, myh9be12/+ and WT controls at 6 months. Asterisks indicate Z-disc aggregation. Scale bar: 2 µM (D). *P<0.05. ns, not significant.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dis. Model. Mech.
