Fig. 8

ID
ZDB-IMAGE-220520-33
Genes
Source
Figures for Wang et al., 2022
Figure Caption

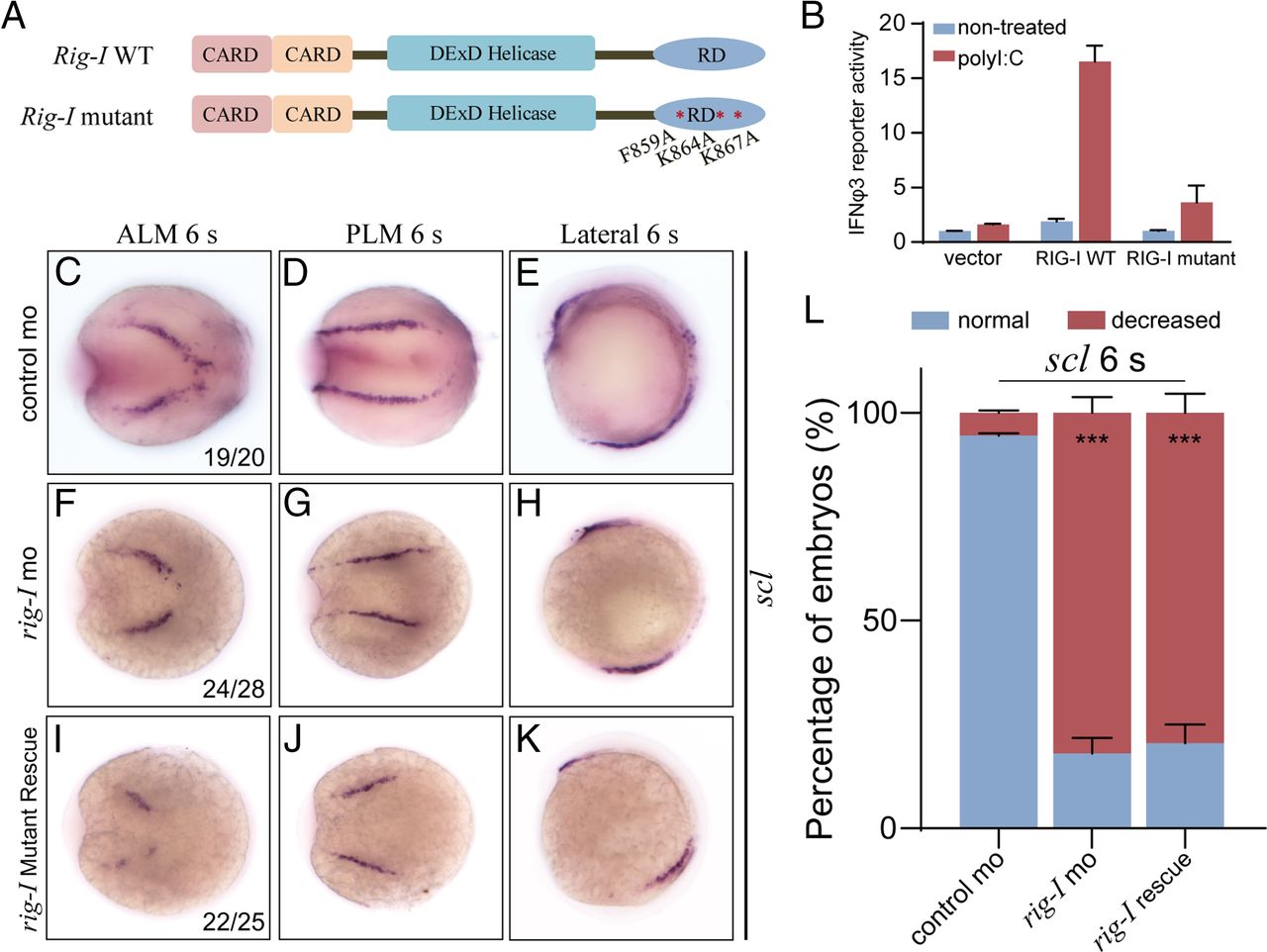

Fig. 8

RNA-binding–deficient RIG-I mutant is unable to rescue the defect of hematopoietic precursors in rig-I morphants

(A) Schematic of various forms of RIG-I, including wild-type and RNA-binding–deficient mutant RIG-Is with amino acid substitutions at F859, K864, and K867 sites in the repressor domain (RD), as indicated by asterisks. (B) A luciferase assay was performed using epithelioma papulosum cyprini cells transfected with the IFNφ3-pro luciferase reporter and TK-Renilla together with 20 ng of RIG-I wild-type or RIG-I mutant (F859A, K864A, K867A), followed by transfection with poly(I:C) (0.1 μg/ml) for another 24 h. (CK) Expression of hematopoietic precursor marker scl/tal1 at the six-somite stage in embryos injected with control MO from dorsal view (C and D) and lateral view (E), rig-I MO from dorsal view (F and G) and lateral view (H), or rig-I MO and RNA-binding-deficient rig-I mutant mRNA from dorsal view (I and J) and lateral view (K). Images were captured under Olympus stereoscope (MVX10 MacroView; original magnification ×50). (L) Percent of embryos with phenotype of normal or decreased staining intensity in control or rig-I morphant embryos from (B)–(J) based on WISH analysis. The number of embryos used for statistics is shown in each figure. Each experiment was repeated three times (n = 3, mean ± SD, Student t test, ***p < 0.001).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Immunohorizons
