Fig 2

ID
ZDB-IMAGE-220314-14
Source
Figures for Martins Fernandes Pereira et al., 2022
Figure Caption

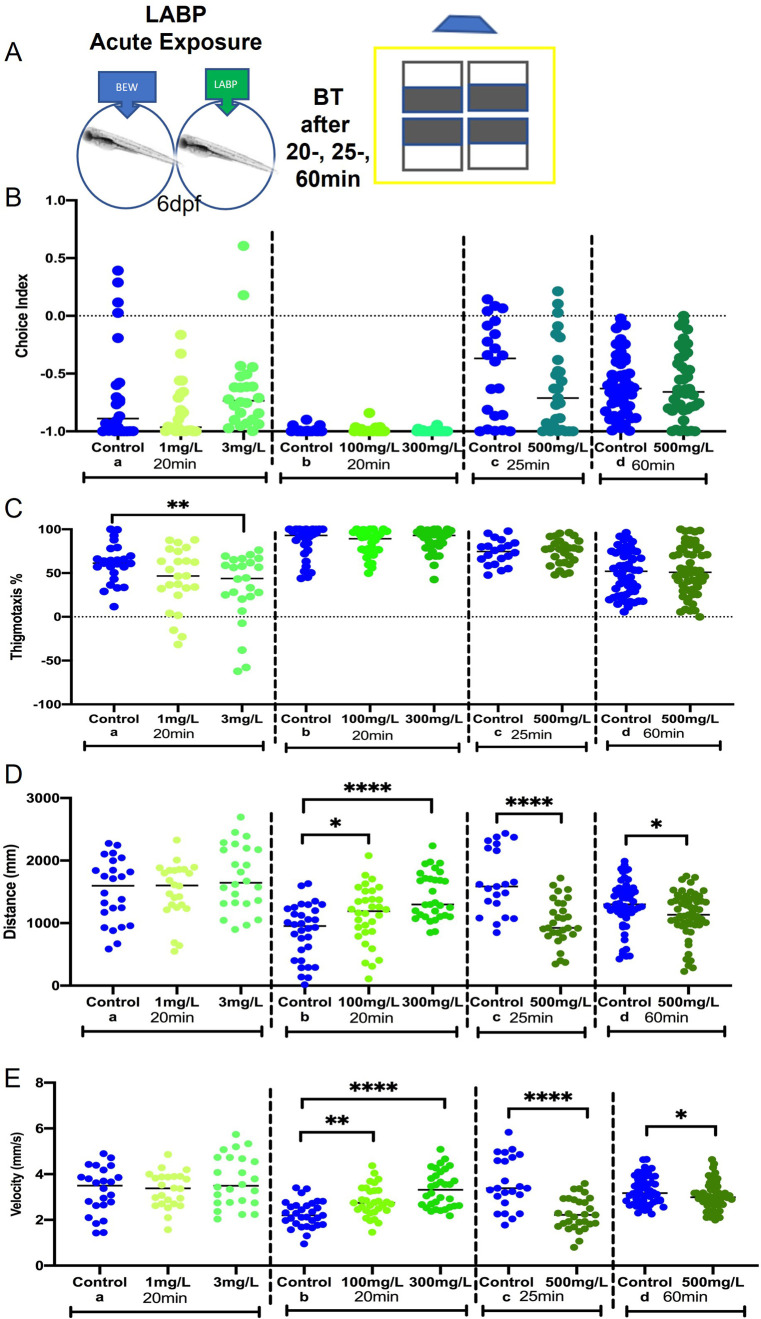

Fig 2 Behavior effects after LABP acute exposure.

A. The schematic of the behavioral testing after LABP exposure (20, 25, or 60 min) in different concentrations (1, 3, 100, 300, or 500 mg/L). B. There was no significant difference in choice index between the control group and LABP treated groups. C. After 20 min of 3 mg/L LBP exposure decreased thigmotaxis significantly (p = 0.0082). The other groups did not show significant differences when compared to control. D. 100 and 300 mg/L LABP added 20 min before testing increased distance significantly (p = 0.0297 and p<0.0001, respectively). 500 mg/L LABP decreased the distance significantly after 25- and 60-min exposure both (p<0.0001 and p = 0.0285, respectively). E. 100 and 300 mg/L LABP added 20 min before testing increased velocity significantly (p = 0.0031 and p<0.0001, respectively). 500 mg/L LABP decreased velocity significantly after both 25- and 60-min exposure (p<0.0001 and p = 0.0254, respectively). Asterisks indicate statistical differences between groups (*p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001). n = 24/group a-20 min; 28/group b-20 min; 28/group c-25 min; 50/group d-60 min.
