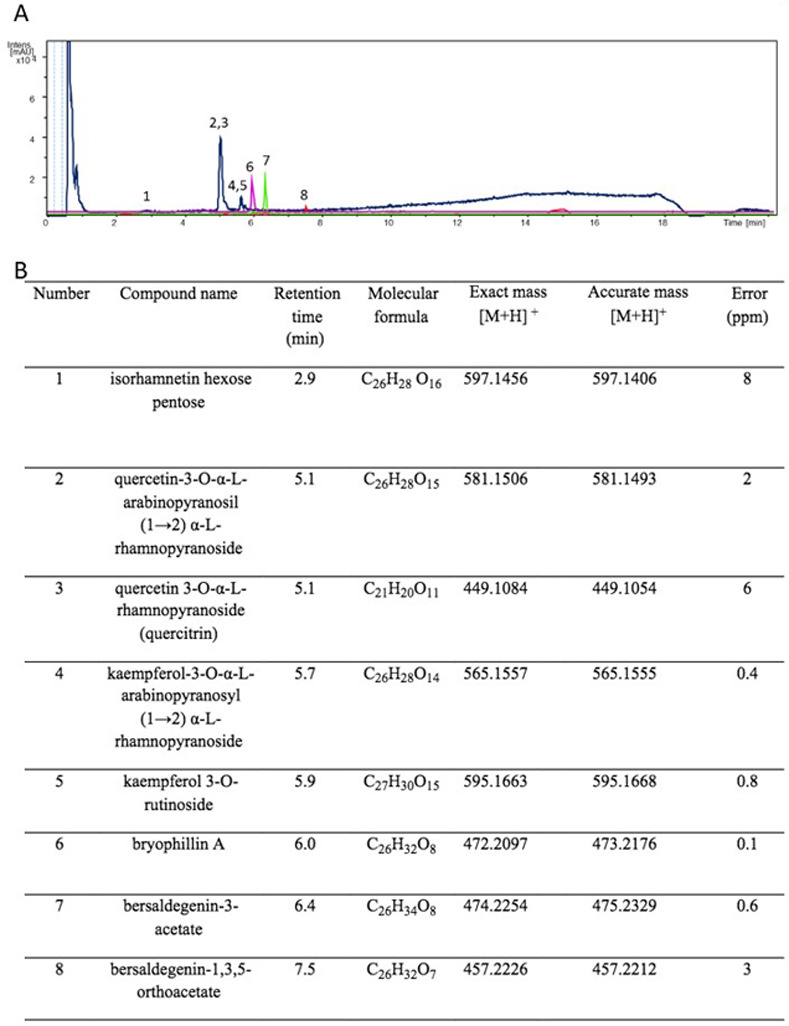

Fig 1 LABP chemical profile characterization.

A. Overlapping of UV (ultraviolet) and EIC (extracted ions) chromatograms obtained from analysis of LABP analyzed by UPLC/DAD-ESI/HRMS/MS (electrospray ionization—positive ion mode). The blue line corresponds to the UV chromatogram. The purple, green and red lines correspond to the EIC. B. The table shows the compounds annotated following the peaks, retention times, molecular formulas, and masses.
