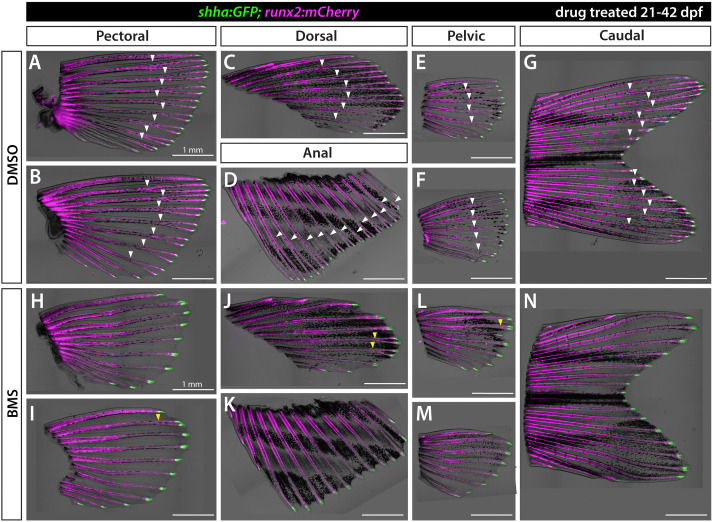

Fig. 4 Shh/Smo signaling promotes ray branching in all paired and unpaired fins. Brightfield and fluorescence overlay images of isolated fins from shha:GFP;runx2:mCherry juvenile fish treated with DMSO (A–G) or 1.25 μM BMS-822923 (BMS; H–N) from 21 to 42 dpf. runx2:mCherry-labeled rays branch (white arrowheads) in all fins whereas rays of BMS-treated fish mostly fail to branch or have severely delayed branching (yellow arrowheads). shha:GFP+basal epidermal cells are restricted to distal ray tips under both conditions. n=6 for each group. Scale bars are 1 mm.
