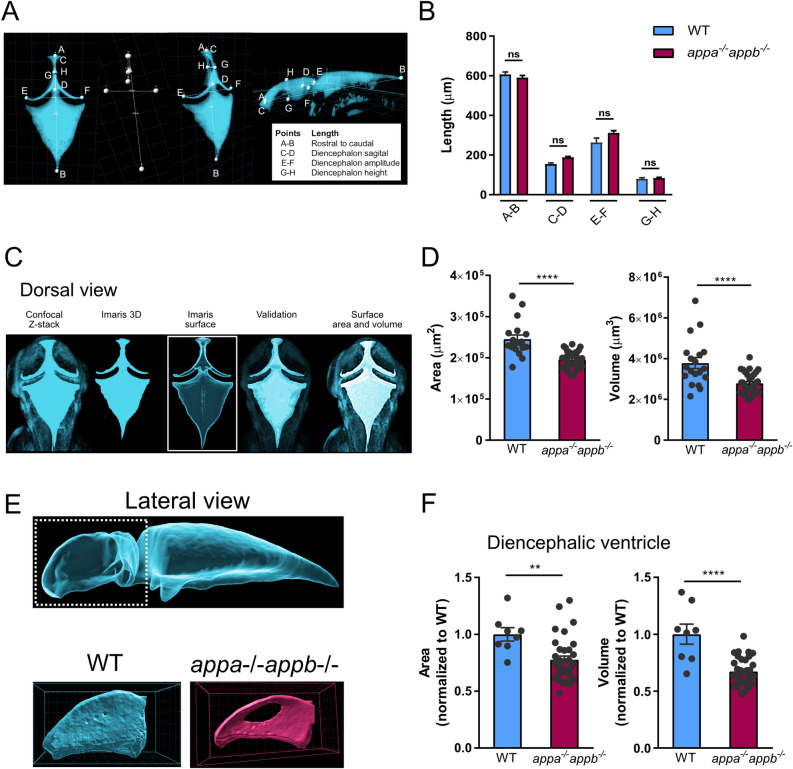

The appa^−/−appb^−/− 2 dpf larvae zebrafish exhibit smaller brain ventricle. Dorsal 3D surface rending of confocal stacks

taken from brain ventricles of dextran injected 2 dpf zebrafish larvae (A). Quantification of total ventricle surface area and volume show that both are decreased in appa^-/-appb^-/- larvae (B). Lateral 3D surface rending of confocal stacks from brain ventricles of dextran injected 2 dpf zebrafish larvae with close up on diencephalic ventricle (C). Quantification of surface area and volume of the diencephalic ventricle in WT and appa^-/-appb^-/- larvae (D). Measurement of gross ventricle morphology at 2dpf WT and appa^-/-appb^-/- larvae as the length (E). Distance between rostral to caudal, diencephalon ventricle sagittal length, amplitude and height show no significant difference in mutants (F). Data are reported as mean ± SEM. ** ρ < 0.01, **** ρ < 0.001. n: (B) WT = 19, appa^-/-appb^-/- = 34, (D) WT = 8, appa^-/-appb^-/- = 34, (F) WT = 5, appa^-/-appb^-/- = 4.
