Figure Caption

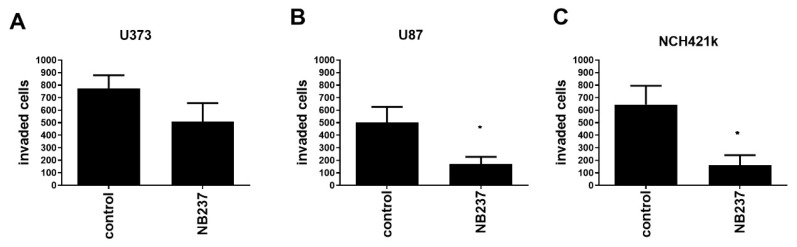

Figure 4
Effect of TRIM28 nanobody NB237 on invasion of GB cells. (A,B) GB cells, U373 and U87, at 10,000 cells/insert; and (C) GSCs NCH421k at 80,000 cells/insert, were seeded in the upper compartment in serum-free medium alone or in combination with TRIM28 nanobody (final concentration 100 µg/mL). The cells that invaded the Matrigel after 48 h were stained with 0.1% crystal violet and counted using inverted microscope. Each value represents mean ± S.D. (Three biological replicates). Statistical analyses was performed using GraphPad Prism software, using t-test, * p < 0.05, vs. control group.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Molecules
