Fig. 3

ID
ZDB-IMAGE-210716-96
Source
Figures for Zhou et al., 2015
Figure Caption

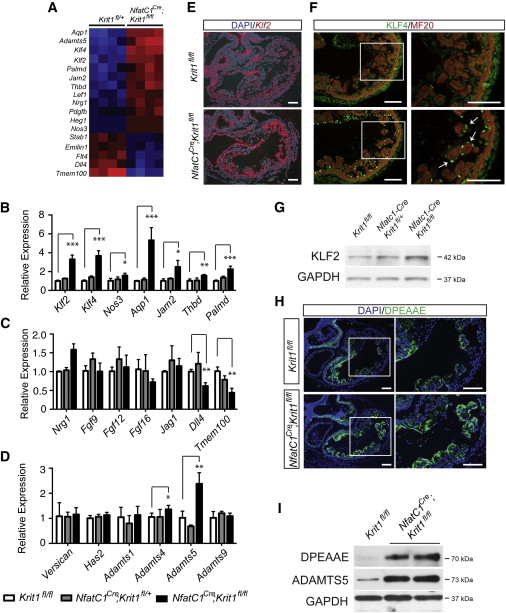

Fig. 3 (A) Microarray analysis of mRNA expression in E10.5 Nfatc1Cre;Krit1fl/fl and Krit1fl/+ littermate hearts reveals increased levels of Klf2, Klf4, KLF2 target genes and Adamts5, and reduced levels of Dll4 and Tmem100. N = 4 for both genotypes. (B) qPCR of E10.5 hearts reveals preserved or increased expression of Nrg1 and FGF growth factors following endocardial Krit1 loss. (C) qPCR of E10.5 hearts reveals elevated levels of Klf2 and established KLF2 target genes following endocardial Krit1 loss. (D) qPCR analysis of genes associated with cardiac jelly matrix proteins and matrix-degrading proteases in E10.5 hearts reveals elevated levels of Adamts5 following endocardial Krit1 loss. N = 3 for Krit1fl/fl, N = 4 for Nfatc1Cre;Krit1fl/+, N = 5 for Nfatc1Cre;Krit1fl/fl in (B)–(D). (E) In situ hybridization for Klf2 in E10.5 Nfatc1Cre;Krit1fl/fl and Krit1fl/fl littermate hearts. (F) Immunostaining for KLF4 protein (arrows) and myocardium (MF20) in E10.5 Nfatc1Cre;Krit1fl/fl and Krit1fl/fl littermate hearts. (G) Immunoblot analysis of KLF2 protein in whole E10.5 Nfatc1Cre;Krit1fl/fl and Nfatc1Cre;Krit1fl/+ and Krit1fl/fl littermate hearts. GAPDH is shown as a loading control. (H) Immunostaining using anti-DPEAAE antibody to detect ADAMTS-cleaved versican reveals increased levels in the E10.5 Nfatc1Cre;Krit1fl/fl heart. Boxed regions are shown at higher magnification on the right. (I) Immunoblot analysis of lysate derived from whole E10.5 hearts reveals increased levels of cleaved versican (DPEAAE) and the ADAMTS5 protease with endocardial loss of Krit1. GAPDH is shown as a loading control. Scale bars represent 100 μm. ∗p < 0.05; ∗∗p < 0.01; ∗∗∗p < 0.001.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 32, Zhou, Z., Rawnsley, D.R., Goddard, L.M., Pan, W., Cao, X.J., Jakus, Z., Zheng, H., Yang, J., Arthur, J.S., Whitehead, K.J., Li, D., Zhou, B., Garcia, B.A., Zheng, X., Kahn, M.L., The cerebral cavernous malformation pathway controls cardiac development via regulation of endocardial MEKK3 signaling and KLF expression, 168-80, Copyright (2015) with permission from Elsevier. Full text @ Dev. Cell
