ZFIN Image: Buchumenski et al., 2021, Figure 2.


Figure Caption

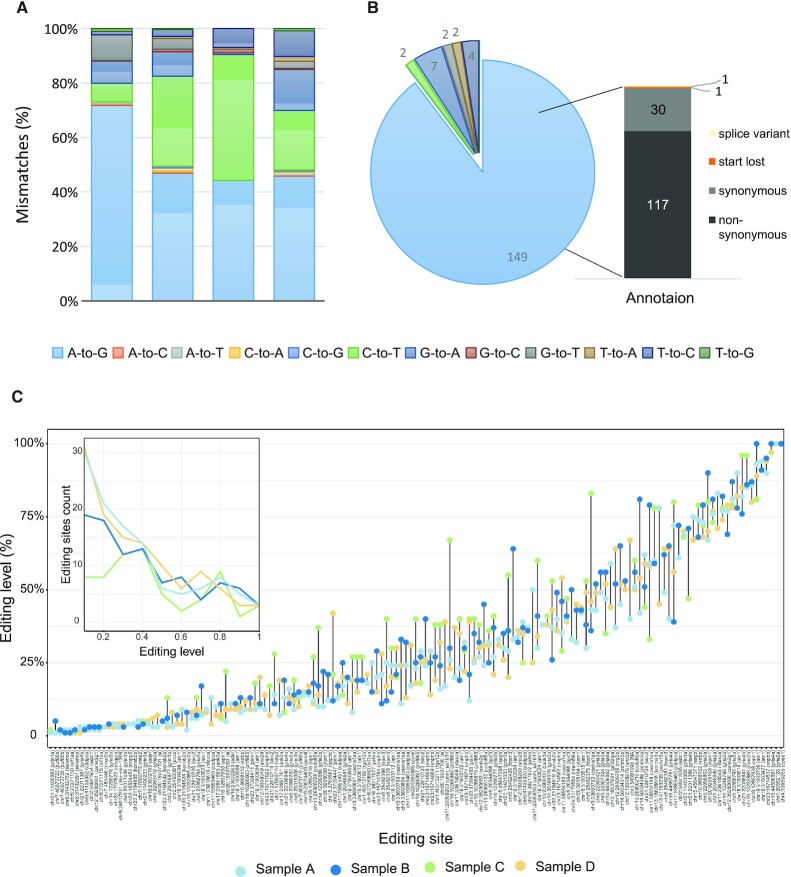

Figure 2.

A-to-I editing sites within coding sequences. (A) Previously described pipeline after applying our filtering scheme for coding regions (Ensembl (88) annotations). The analyses were performed on the four brain samples. Low specificity of A-to-G mismatches was observed, suggesting a high false-positive rate. (B) Relative proportions of the total number of mismatches detected after considering only recoding sites appearing at least in two out of four samples. Most of the detected mismatches were of the A-to-G type. (C) Editing levels in 149 A-to-I editing events in CDS, colored by the sample in which it was detected.
