Figure 3—figure supplement 6.

Figure 3—figure supplement 6.

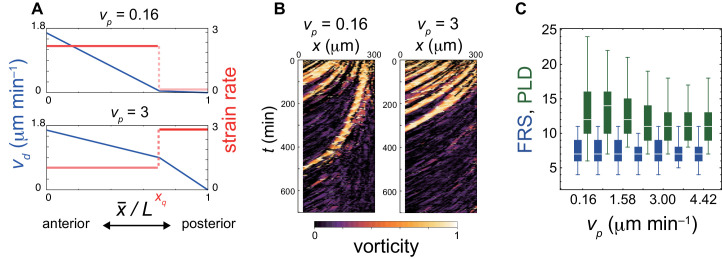

(A) Advection speed vd (blue) as a function of normalized position, x-/L=x-xa/L. vp is the strain rate that is the magnitude of spatial derivative of advection speed (red) at the posterior part of the PSM (xq<x-/L). A smaller vp (top: vp=0.16) represents a lower strain rate at the posterior part than the anterior part of the PSM. A larger vp (bottom: vp=3) represents a larger strain rate in the posterior part of the PSM. (B) Kymographs of vorticity for (left) vp=0.16 and (right) vp=3. Vorticity across the right PSM is shown. Trajectories of counter-clockwise vortices are presented. (C) Dependence of FRS (blue) and PLD (green) on vp. The box-whisker plot indicates (0.05, 0.25, 0.75, 0.95) quantiles of FRS and PLD for 100 realizations of simulations. The white bars indicate median.
