Figure Caption

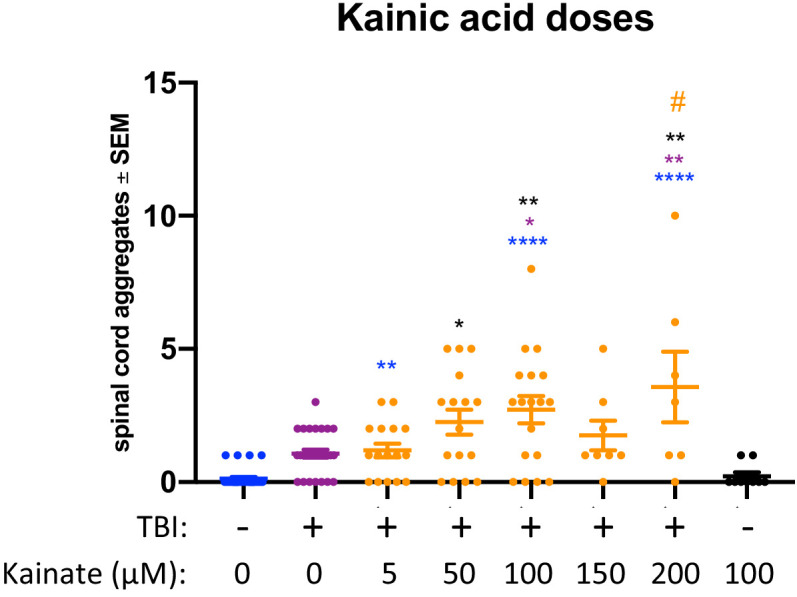

Figure 5; supplement 5.
Tau4R-GFP larvae were subjected to TBI and post-traumatic seizures were intensified by addition of the convulsant kainate. Although kainate treatment alone (without TBI) did not appreciably increase GFP+ Tau puncta in the spinal cord (black), kainate significantly increased the abundance of puncta in larvae receiving TBI (*p<0.5, **p<0.01, ****p<0.0001 compared to TBI alone [blue text]; #p<0.01 compared to TBI+5 μM dose). Raw data is plotted for each larva, along with mean ± standard error.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Elife
