Fig. 2

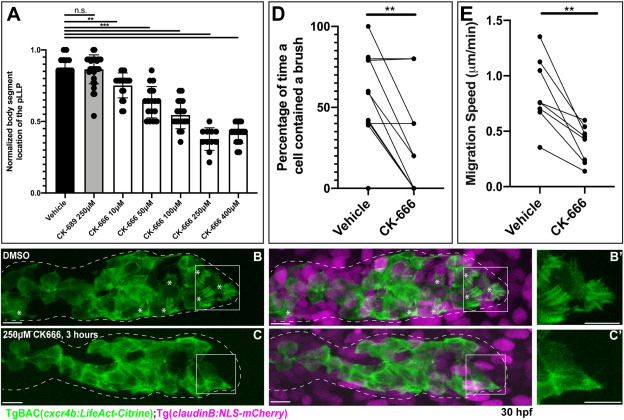

Fig. 2 Fig. 2. Arp2/3 activity is required for brush-like protrusion formation and pLLP migration. (A) Effects of increasing concentration of CK-666 on pLLP migration in comparison to vehicle and inactive control drug, CK-689. (B) Mosaically labeled embryos carrying TgBAC(cxcr4b:LifeAct-Citrine) transgene were first exposed to DMSO (vehicle) and imaged for 1.5 ​h beginning at 30 hpf (Movie 2). (C) Following DMSO treatment, embryos were then exposed to the Arp2/3 inhibitor CK-666 for 4 ​h and concurrently imaged (Movie 2). Note the loss of brush-like protrusions following the treatment. Images show lateral views. (B′,C′) 1.8X zoom of boxed cells in B and C. (D) Percentage of time a given cell contained a brush-like protrusion during vehicle and the inhibitor treatment (n ​= ​11 ​cells from 6 embryos). (E) Migration speed of the whole pLLP during vehicle and inhibitor treatment (n ​= ​8 whole pLLPs). Asterisks ​= ​brush-like protrusions. Scale bar ​= ​10 ​μm.
