ZFIN Image: Schild et al., 2020, Fig. 3


Figure Caption

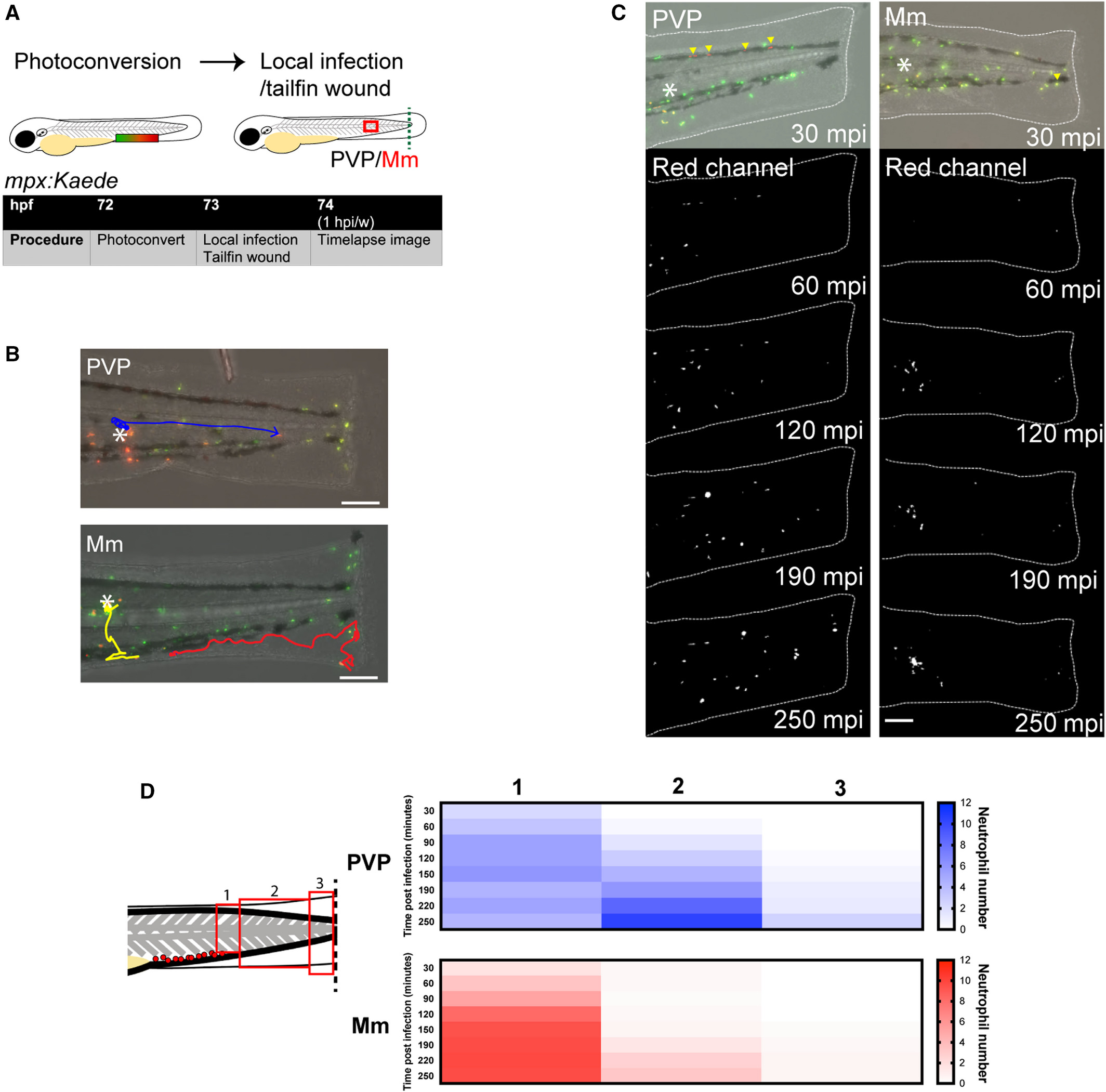

Fig. 3 Mm retains neutrophils at the somite infection site at the expense of migration to the tailfin wound. (A) Schematic of experiment for B–D, showing PC of neutrophils in the CHT of mpx:Kaede embryos. (B) Example fate‐tracks of red neutrophils that were photoconverted in the CHT and migrated to either PVP or Mm infection in the somite over 4 hpi/w. Data shown are examples from two independent experiments with 10 fish per group. Scale bar = 100 μm. (C) Stereo‐fluorescence micrographs of the location of red photoconverted neutrophils that originated in the CHT in PVP and Mm‐infected larvae. Data shown are examples from two independent experiments with 10 fish per group. Scale bar = 100 μm. (D) Heatmap of location of red photoconverted neutrophils that originated in the CHT over time. Data shown are n = 5 embryos per group accumulated from two independent experiments.
