Figure 5

ID
ZDB-IMAGE-210113-15
Genes
Source
Figures for Danesin et al., 2021
Figure Caption

Figure 5

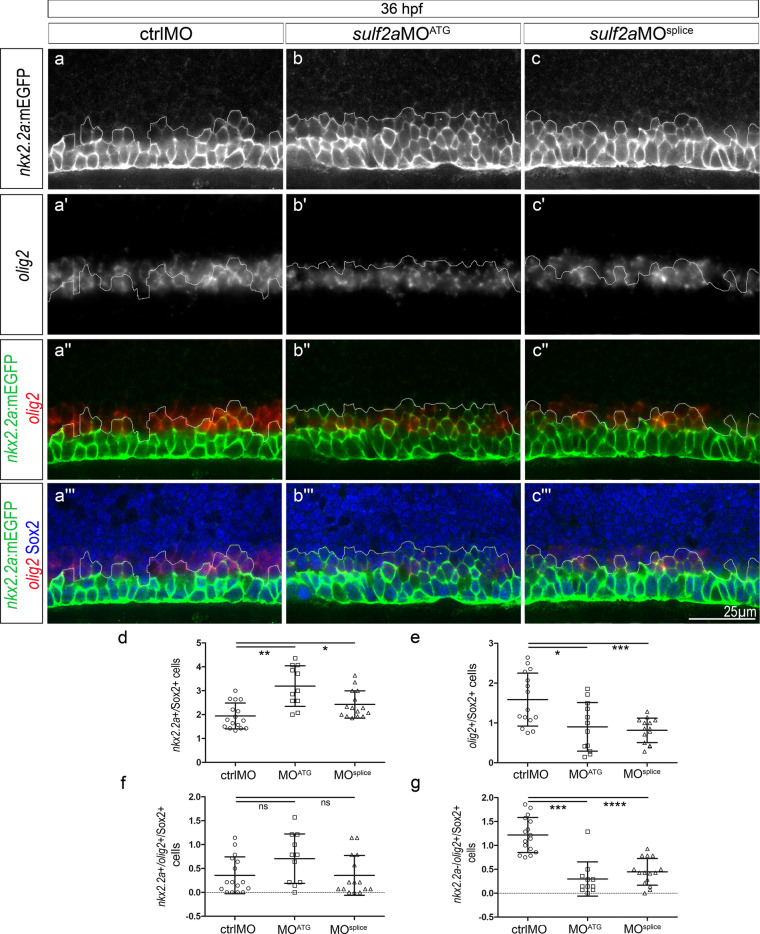

Sulf2a depletion does not affect formation of the Nkx2.2a/Olig2-co-expressing p* domain but reduces the number of progenitors that only express Olig2 at the onset of gliogenesis. Side views of 36 hpf embryos. (a–c”’): Double detection of olig2 mRNA and Sox2 in Tg(nkx2.2a:mEGFP) embryos injected with ctrlMO (a–a”’), sulf2aMOATG (b–b”’) or sulf2aMOsplice (c–c”’). Vertical sets present successively the nkx2.2a:mEGFP signal (green in a”–c”, a”’–c”’), the olig2 mRNA staining (red in a”–c”,a”’–c”’), the merged image of nkx2.2a:mEGFP and olig2 signals and the merged image together with Sox2 staining (blue in a”’–c”’). Dotted line represents the dorsal limit of nkx2.2a:mEGFP-expressing domain. (d-g) Cell quantification performed in embryos injected with ctrlMO (n = 16), sulf2aMOATG (n = 11) and sulf2aMOsplice (n = 15) from three independent experiments. Cell counts in (d,e) correspond to the population of Sox2 + progenitors expressing either nkx2.2a:mEGFP (d) or olig2(e). Quantifications in (f,g) correspond to Sox2 + progenitors that either co-express olig2 and nkx2.2a:mEGFP (f) or express olig2 mRNA but not nkx2.2a:mEGFP (g). Except in e where datasets were compared with Student’s t-test (unpaired two-tailed), datasets were compared with Mann Whitney’s test (two-tailed). Results are presented as a mean number of cells along the dorso-ventral axis per embryo ± s.d (*p < 0,05, ** p < 0,005, ***p < 0.001,****p < 0.0001).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Sci. Rep.
