Light-Sheet Microscope Implementation.

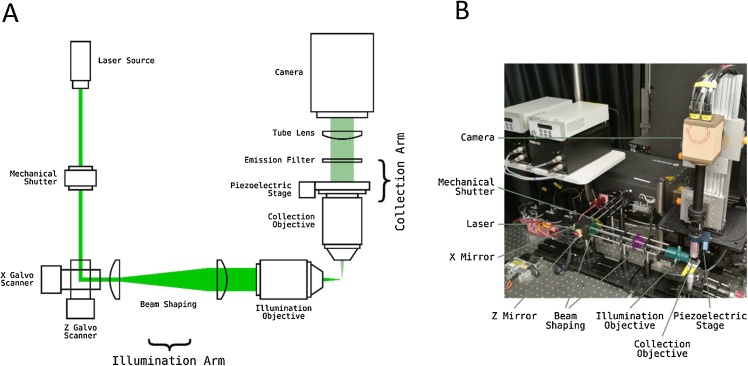

(A) Diagram outlining light-sheet microscope with two mirror galvanometers and a stationary sample. The light sheet is created from a laser beam by the’ X Galvo mirror’. The’ Z Galvo mirror’ then moves the sheet through the sample to create volumetric excitation. This is synchronized with a Piezoelectric stage that moves the imaging objective so that the excitation plane always coincides with the imaging plane. (B) A photo of an example light-sheet microscope setup with one light-sheet path. The main components are colour coded.
