Figure 3

ID: ZDB-IMAGE-201214-27
Publication: Maradonna et al., 2020 - Knockout of the Glucocorticoid Receptor Impairs Reproduction in Female Zebrafish
All Figures: Figures for Maradonna et al., 2020


Figure Caption

Figure 3

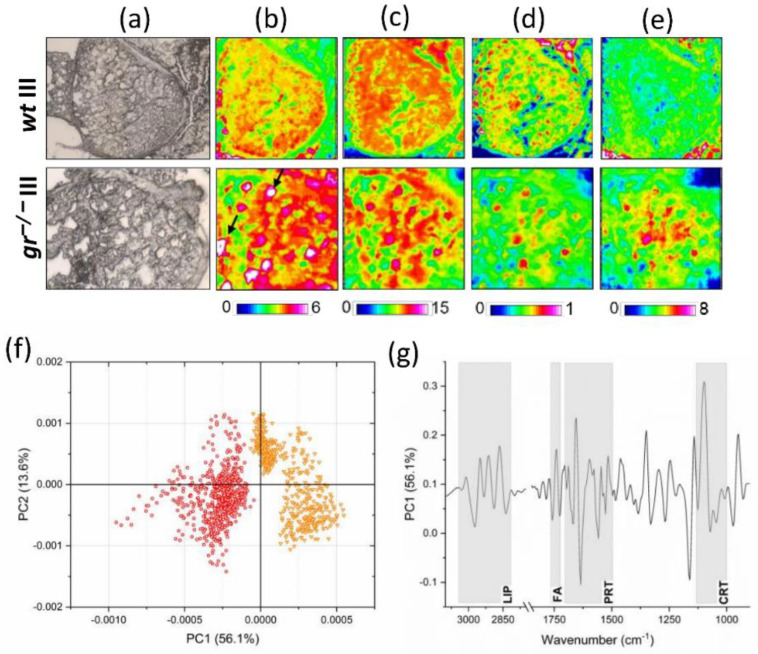

Infrared imaging analysis. (a) Microphotographs of class III oocytes in wt and gr^−/− ovary sections. False color images showing the topographical distribution of: (b) lipids (color scale 0–6), (c) proteins (color scale 0–15), (d) glycosylated compounds (color scale 0–1), and (e) cortisol (color scale 0–8) (the dimensions of false color images were 328 × 328 mm). (f) Principal component analysis (PCA) scores’ plot of wt III (orange) and gr^−/− (red) spectral data. (g) PC1 loadings of wt and gr^−/− class III oocytes.
