Figure 3—figure supplement 3—source data 1.

ID: ZDB-IMAGE-201003-89
Source: Figures for Sha et al., 2020


Figure Caption

Figure 3—figure supplement 3—source data 1. Replicate of multiple rsCaMPARI labeling cycles in the same zebrafish (same experiment as <xref rid='fig3' ref-type='fig'>Figure 3d</xref>, different fish).

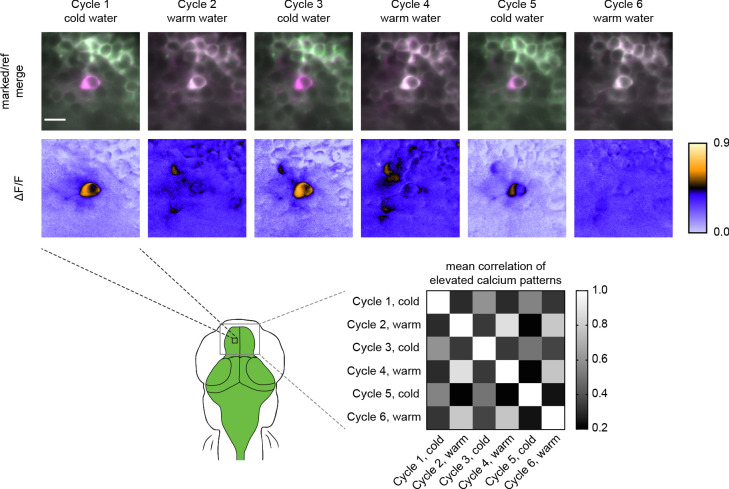

Top panels are individual Z slices from the pallium of the same fish (5 dpf) brain illustrating the same field of view from six marking cycles of alternating cold and warm water stimulus. Scale bar is 10 μm. Bottom-right panel is a normalized correlation matrix comparing labeling patterns in the upper pallium and habenula across multiple marking cycles in the same fish.

Figure 3—figure supplement 3—source data 1.Mean correlation matrix values of ΔF/F images across multiple cycles of rsCaMPARI marking in the same zebrafish pallium exposed to either cold or warm water.
