Figure 2

ID
ZDB-IMAGE-200814-23
Source
Figures for Peperstraete et al., 2020
Figure Caption

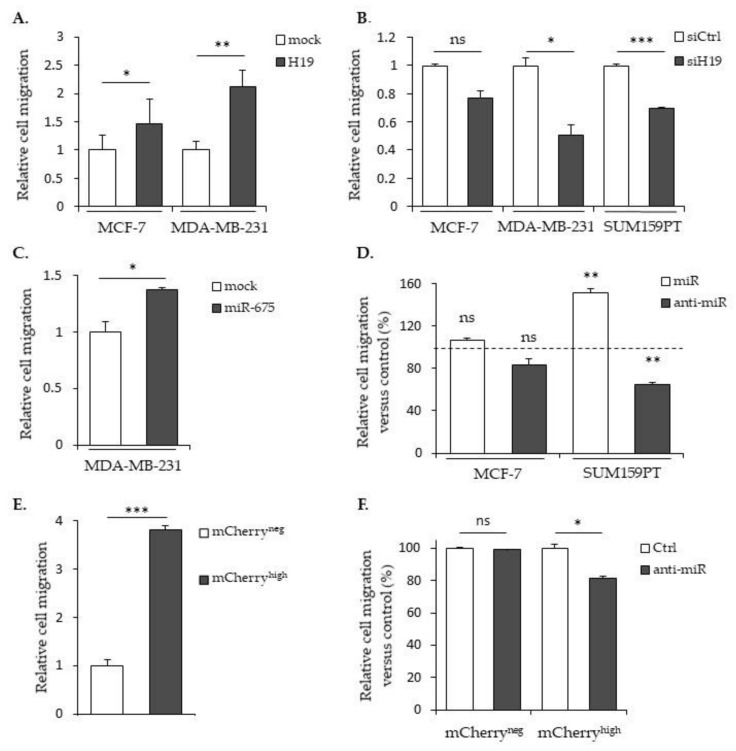

Figure 2

H19 and miR-675 both promote breast cancer cell migrations. (A) Control (mock) or H19-stably overexpressing cells (H19) were cultured in Transwell for 24 h. Migrated cells were then incubated with 1-mM Hoescht 33258 and counted. (B) Migratory capacities of the control (siCtrl) and H19-knockdown cells (siH19) determined by Transwell assay. (C) MDA-MB-231 control (mock) or miR-675-stably overexpressing cells (miR-675) were cultured in Transwell for 24 h. Migrated cells were then incubated with 1-mM Hoescht 33258 and counted. (D) Migratory capacities of miR-675-transfected cells (miR) or miR-675-specific inhibitor transfected cells (anti-miR) determined by Transwell assay. Results are presented as a percentage of the control. (E) Relative migratory capacities of SUM159PT-pH19-mCherryneg versus SUM159PT-pH19-mCherryhigh determined by Transwell assay. (F) Migratory capacities of miR-675-specific inhibitor transfected cells (anti-miR). Results are presented as a percentage of the control. (G) Migratory capacities of miR-675-specific inhibitor transfected cells (anti-miR). Results are presented as a percentage of the mCherryneg condition. * p < 0.05; ** p < 0.01; *** p < 0.001; ns: not significant.
