Fig. 3

ID
ZDB-IMAGE-200331-2
Source
Figures for Bensimon-Brito et al., 2019
Figure Caption

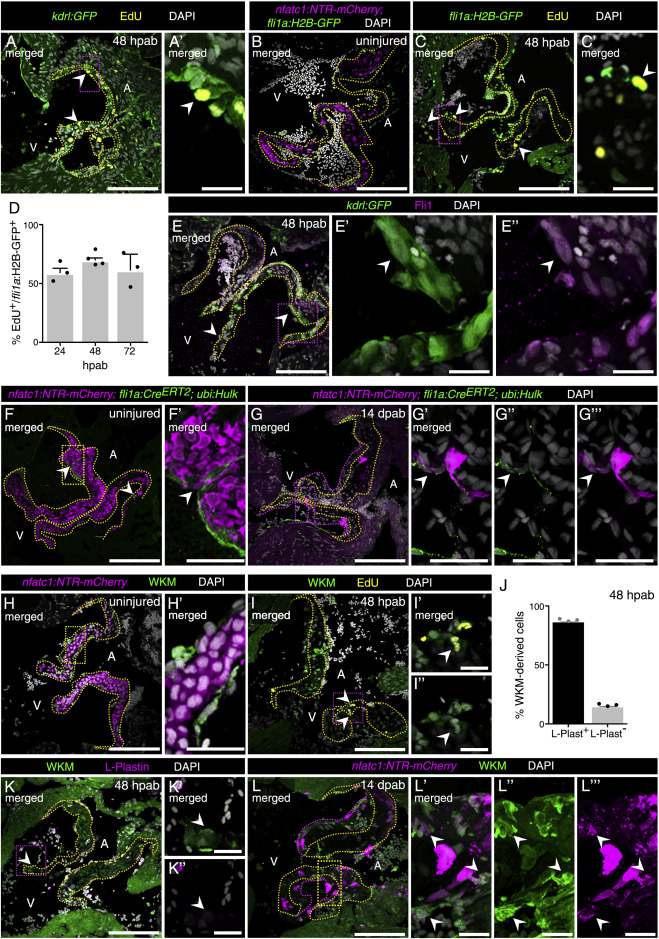

Fig. 3 New Valve Cells Differentiate from Endothelial Cells and Kidney Marrow-Derived Cells (A and A′) EdU detection and kdrl:GFP expression in 48 hpab valves (arrowheads point to double-positive cells; n = 4). (B) Uninjured valve showing absence of fli1a:H2B-GFP expression in VICs (n = 4). (C and D) Characterization (C and C′; n = 4) and quantification of the percentage (D) of EdU+ cells positive for fli1a:H2B-GFP expression. Boxed areas shown in (A′) and (C′). (E) Co-localization of kdrl reporter with Fli1 antibody (arrowheads; n = 4). Boxed areas shown in E′ and (E″). (F–G″′) Cre/lox lineage tracing experiments show a few endothelial-derived nfatc1+ cells (arrowheads) in uninjured valves (F and F′; n = 6) and contribution of endothelial cells to nfatc1+ VICs (arrowheads) at 14 dpab (G–G″′; n = 9). Boxed areas shown in (F′) and (G′–G″′). Yellow and pink dashed lines delineate the old and new valve leaflets, respectively. (H–I″) WKM-derived cells in uninjured valves (H and H′; n = 3) and positive for EdU (I–I″) at 48 hpab. (J–K″) Quantification (J) and localization (K–K″) of WKM-derived cells negative for the immune cell marker L-Plastin. Boxed areas shown in (H′), (I′), (I″), (K′), and (K″). (L–L″′) Contribution of circulating WKM-derived cells to new nfatc1+ cells (arrowheads) at 14 dpab (n = 4). Boxed areas shown in (L′–L″′). A, atrium; V, ventricle. Scale bars: (A), (B), (C), (E), (F), (G), (H), (I), (K), and (L) 100 μm; (A′), (C′), (E′ and E″), (F′), (G′–G″′), (H′), (I′–I″), (K′ and K″), and (L′–L″′) 20 μm.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 52(1), Bensimon-Brito, A., Ramkumar, S., Boezio, G.L.M., Guenther, S., Kuenne, C., Helker, C.S.M., Sánchez-Iranzo, H., Iloska, D., Piesker, J., Pullamsetti, S., Mercader, N., Beis, D., Stainier, D.Y.R., TGF-β Signaling Promotes Tissue Formation during Cardiac Valve Regeneration in Adult Zebrafish, 9-20.e7, Copyright (2019) with permission from Elsevier. Full text @ Dev. Cell
