Figure 4

ID: ZDB-IMAGE-200314-19
Source: Figures for Sarmah et al., 2020


Figure Caption

Figure 4

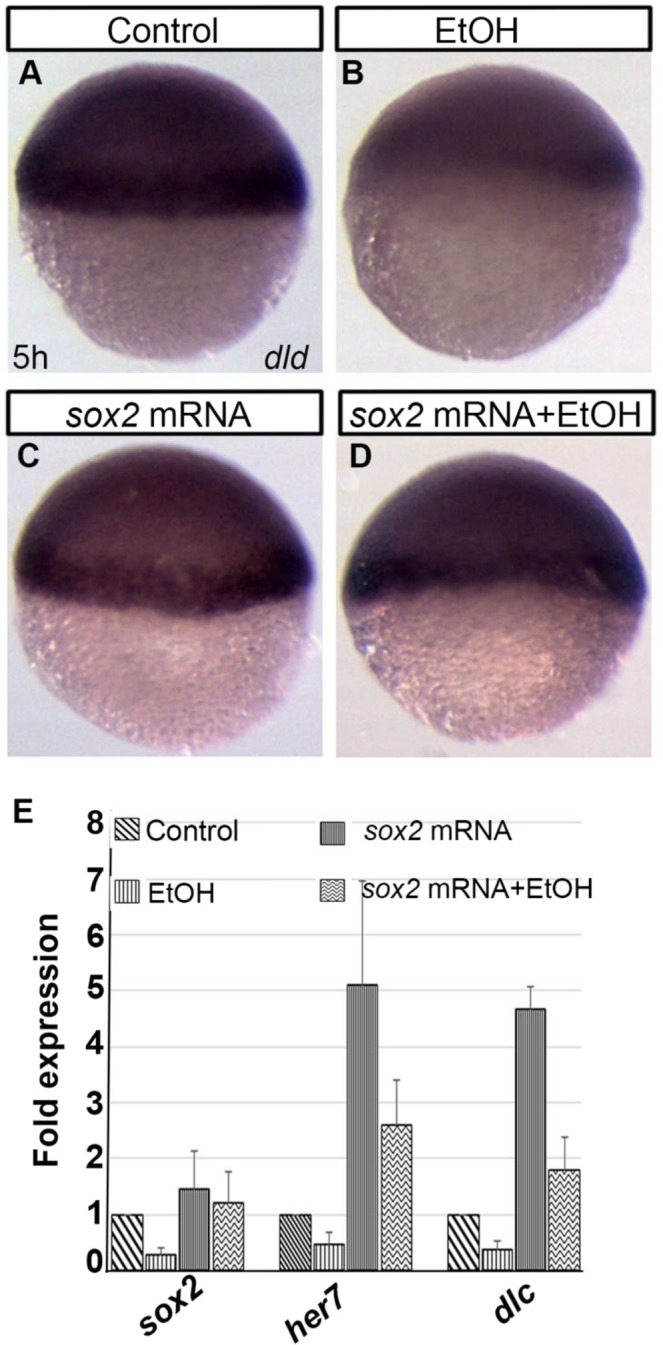

Ethanol induced gene expression changes was reversed by sox2 mRNA injection. (A–D) Whole mount ISH shows reduced dld expression after ethanol exposure, which was like control in sox2 mRNA injected and sox2 mRNA injected plus ethanol-treated embryos. (E) Quantitative PCR showed downregulation of sox2, her7, and dlc transcripts in the ethanol-treated embryos, which increased in the sox2 mRNA injected plus ethanol-treated embryos.
