Figure 4.

ID
ZDB-IMAGE-191230-574
Source
Figures for Sharma et al., 2019
Figure Caption

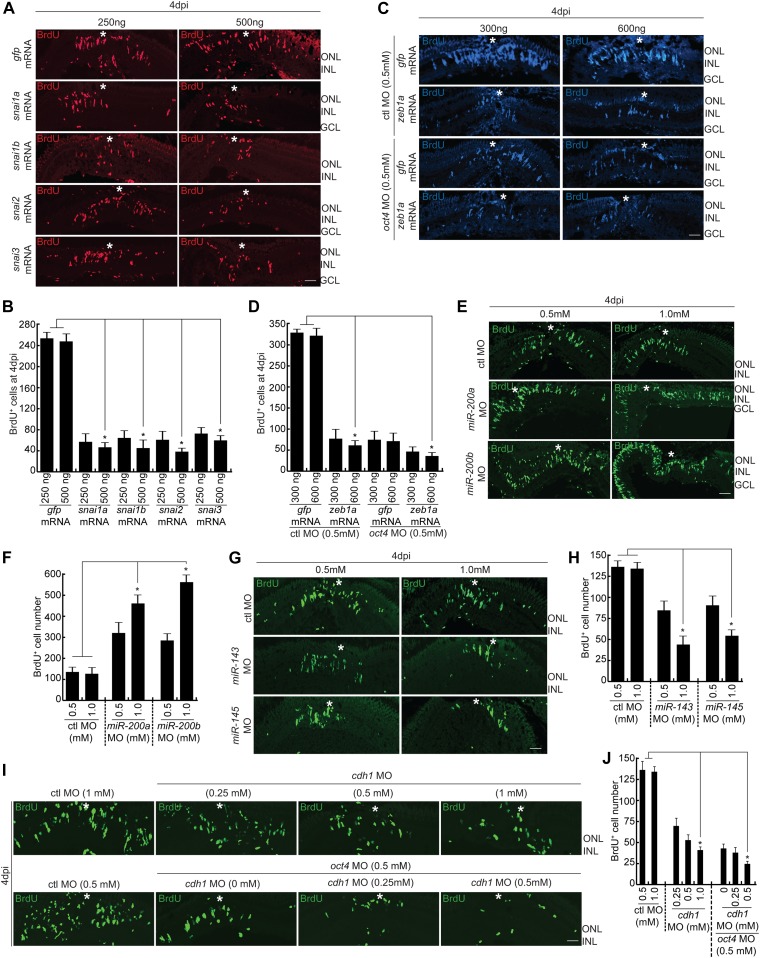

Figure 4. Involvement of Snails, Zebs, <italic>miR200a/miR-200b/miR-143/miR-145</italic>, and Cdh1 to ensure adequate number of MGPCs during retina regeneration.

(A, B) IF confocal microscopy images of 4 dpi retinal cross sections show BrdU+ MGPCs in snai1a, snai1b, snai2, and snai3 mRNA-transfected conditions along with gfp mRNA-transfected control retina (A), which are quantified (B); *P < 0.002 (t test), N = 4. (C, D) IF confocal microscopy images of 4 dpi retinal cross sections show BrdU+ MGPCs in zeb1a mRNA transfected conditions along with gfp mRNA transfected control retina, with control MO and oct4 MO-electroporated conditions (C), which are quantified (D); *P < 0.001 (t test), N = 4. (E, F) IF confocal microscopy images of 4 dpi retinal cross sections show BrdU+ MGPCs in miR-200a/miR-200b MO-electroporated conditions along with control MO (E), which are quantified (F); *P < 0.004 (t test), N = 4. (G, H) IF confocal microscopy images of 4 dpi retinal cross sections show BrdU+ MGPCs in miR-143/miR-145 MO-electroporated conditions along with control MO (G), which are quantified (H); *P < 0.01 (t test), N = 4. (I, J) IF confocal microscopy images of 4 dpi retinal cross sections show BrdU+ MGPCs in cdh1 MO-electroporated conditions along with control MO and oct4 MO (I), which are quantified (J); *P < 0.003 (t test), N = 4. Ctl MO is control MO. Error bars are SD. (A, C, E, G, I) Scale bars, 10 μm; the asterisk marks the injury site; GCL, ganglion cell layer; INL, inner nuclear layer; ONL, outer nuclear layer (A, C, E, G, I).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Life Sci Alliance
