Figure 6

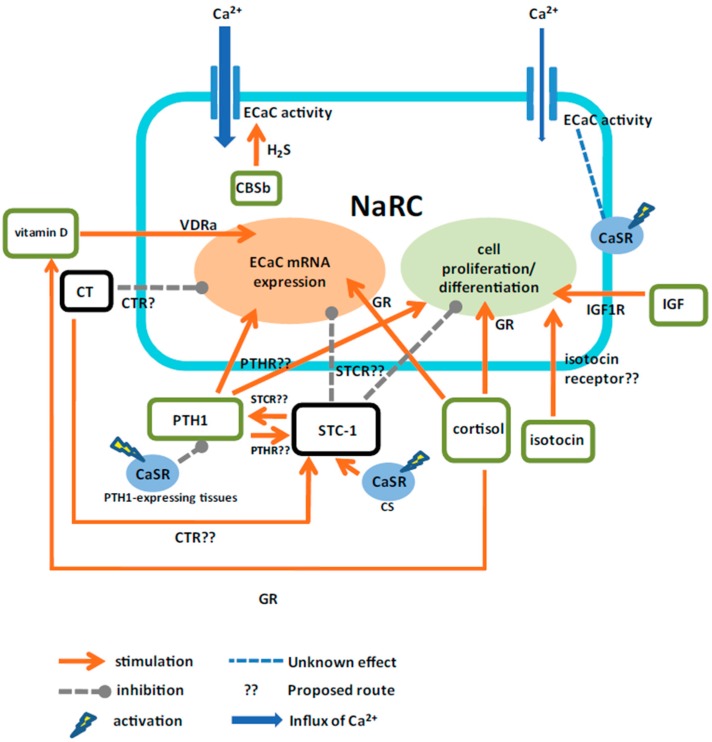

A proposed model for the actions of calcitropic hormones on zebrafish NaRCs. Calciotropic hormones are suggested to directly and indirectly (via the effector hormone(s)) regulate the cell proliferation/differentiation and the mRNA expression or activity of ECaC in NaRCs. CaSR, calcium-sensing receptor; CBSb, cystathionine-β-synthaseb; CS, corpuscle of Stannius; CT, calcitonin; CTR, calcitonin receptor; ECaC, epithelial Ca²⁺ channel; GR, glucocorticoid receptor; H₂S, hydrogen sulfide; IGF, insulin-like growth factor; IGF1R, insulin-like growth factor 1 receptor; NaRC, Na⁺-K⁺-ATPase-rich cell; PTH1, parathyroid hormone 1; PTHR, parathyroid hormone receptor; STC-1, stanniocalcin1; STCR, stanniocalcin receptor; VDRa, vitamin D receptor A.
