Fig. 5

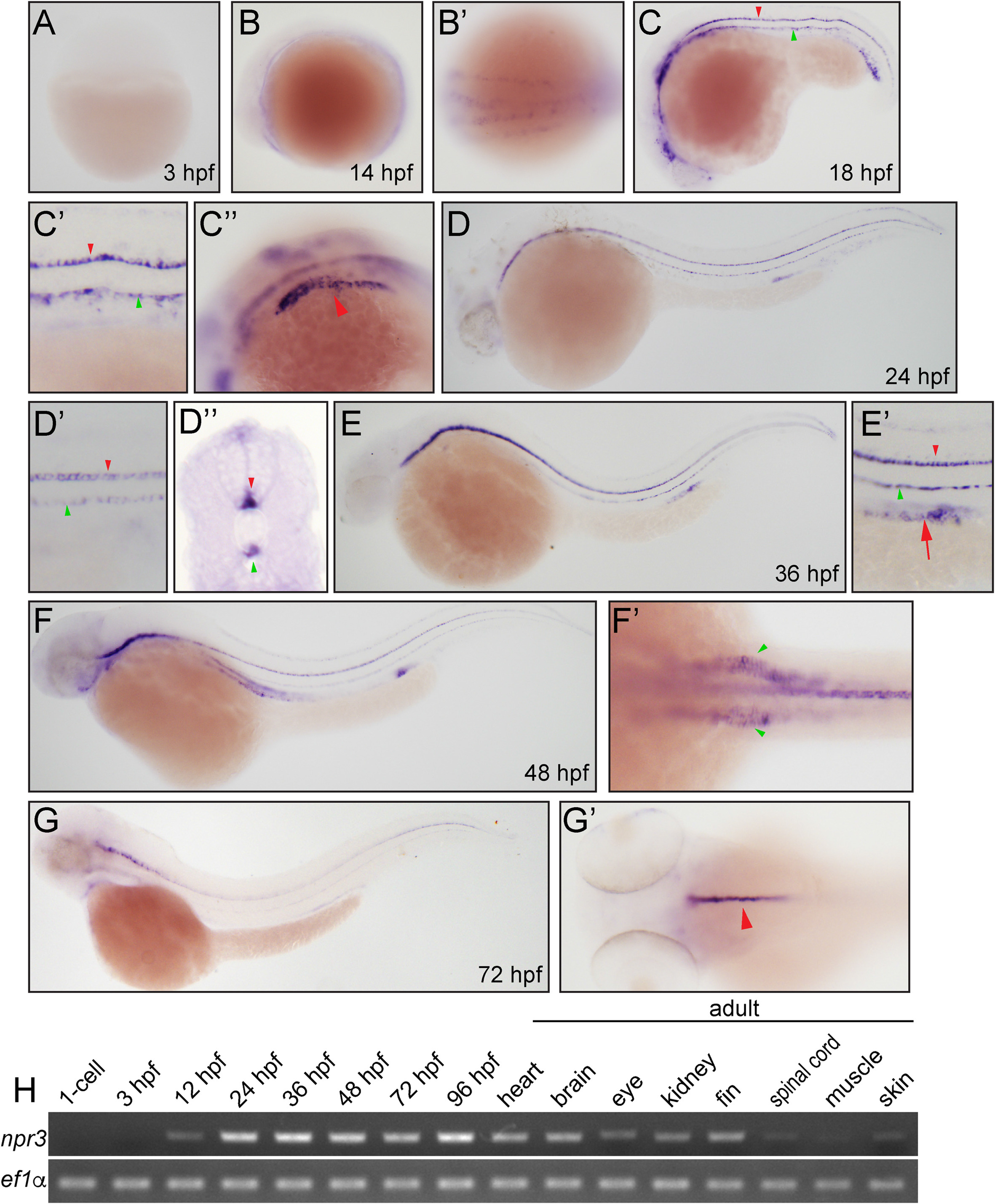

Expression analysis of zebrafish npr3. (A) 3 hpf, lateral view, no staining. (B) 14 hpf, lateral view, weak staining. (B′) 14 hpf, dorsal view, weak staining. (C, C′) 18 hpf, lateral view, red arrowhead indicates floor plate; green arrowhead indicates hypochord. (C″) 18hpf, dorsal view, arrowhead indicates proximal convoluted tubule. (D, D′) 24 hpf, lateral view, red arrowhead indicates floor plate; green arrowhead indicates hypochord. (D″) 24 hpf, the trunk transverse section of the embryos stained with the antisense npr3 probe, red arrowhead indicates floor plate; green arrowhead indicates hypochord. (E, E′) 36 hpf, lateral view, red arrowhead indicates floor plate; green arrowhead indicates hypochord. (F) 48 hpf, lateral view. (F′). 48hpf, lateral view, arrowhead indicates proximal convoluted tubule. (G) 72 hpf, lateral view. (G′) 72 hpf, dorsal view, arrowhead indicates floor plate. (H) Reverse transcriptase-PCR analysis of zebrafish npr3.
