Fig. S2

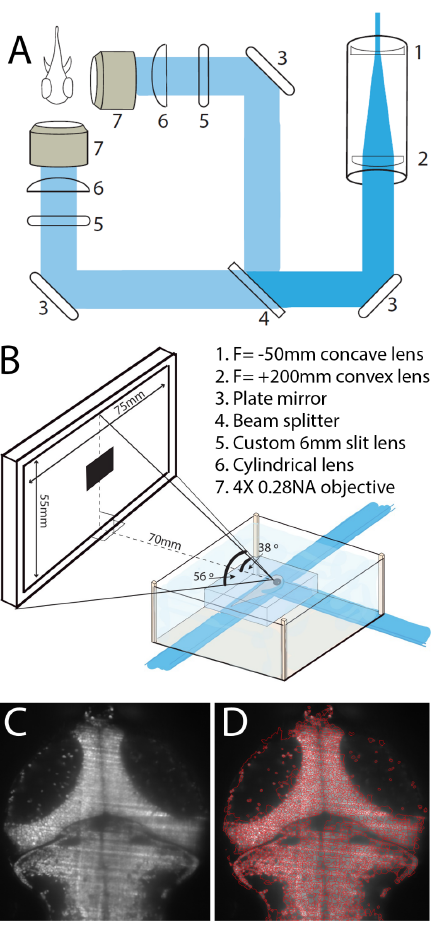

Optical setup for functional imaging during visual stimulation.

(A) The selective plane illumination microscope (SPIM) setup used for all experiments. (B) Animals were placed in a custom-built chamber, embedded in agarose, with light from the SPIM entering from the front and side. A 75 X 55mm screen was placed 70mm from the animal for visual stimulation. (C) An example image of the tectum taken on the SPIM setup in (A), and the corresponding watershed segmentation of this image (D).
