Figure Caption

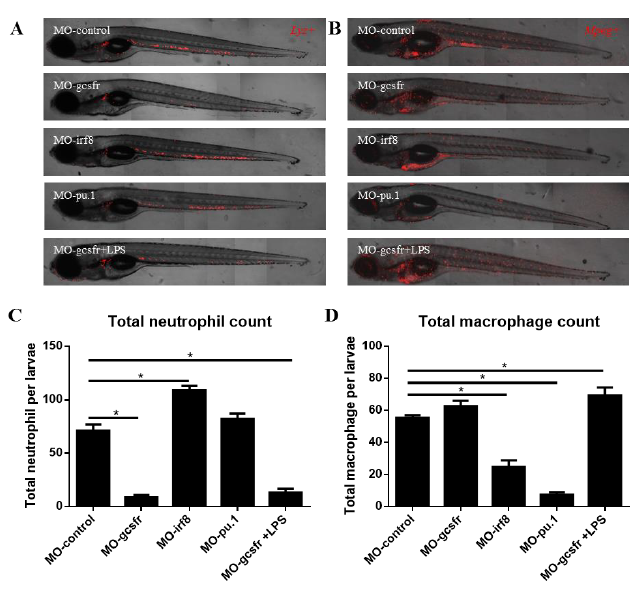

Fig. S2
Effects of morpholinos on inhibition of differentiation of neutrophils or macrophages. lyz+ or mpeg+ fish were crossed with wildtype and morpholinos were injected into the yolk at one cell stage. (A) Representative images of lyz+ larvae after 6 days of morpholino injection. (B) Representative images of mpeg+ larvae after 6 days of morpholino injection. (C) Quantification of total neutrophil number in lyz+ larvae after 6 days of morpholino injection. (D) Quantification of total macrophage number in mpeg+ larvae after 6 days of morpholino injection. *P < 0.05.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Sci. Rep.
