Fig. 2

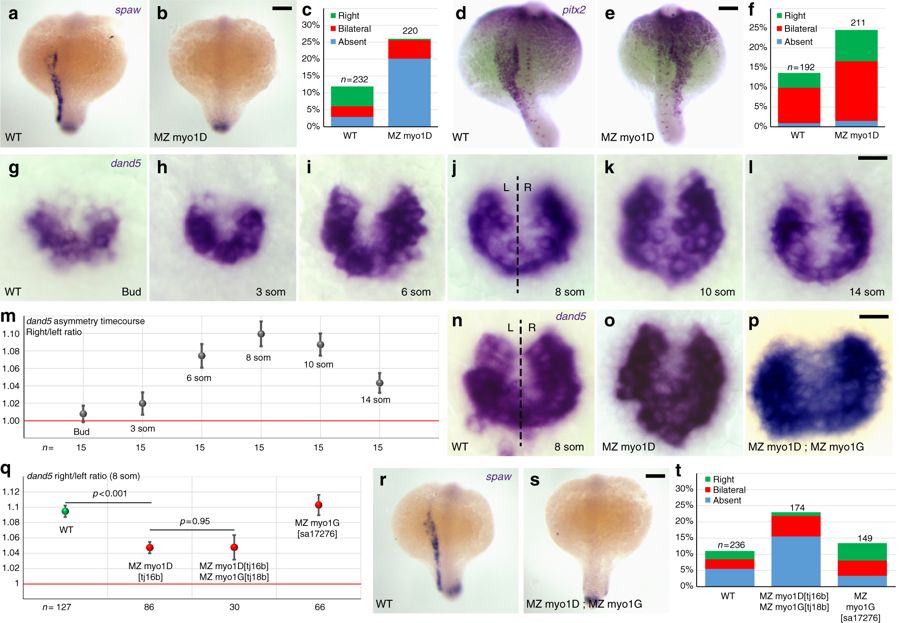

myo1D is required for left–right Organizer function. af MZ myo1D mutants display an impaired expression of southpaw (spaw) and pitx2 in the left lateral plate mesoderm. c, f Quantifications of spaw (c) and pitx2 (f) expression. For pitx2, the most marked difference between WT and MZ myo1D mutants is observed in the category with right-sided expression (e). gm Temporal evolution of the asymmetry of dand5 expression between the end of gastrulation (Bud) and the 14-somite stage. m Quantifications of the relative abundance of dand5 transcripts on the left (L) and right (R) side of WT ABTÜ embryos reveal a peak of LR asymmetry at the eight-somite stage. nq Eight-somite stage asymmetry of dand5 asymmetry is reduced in MZ myo1D mutants. No further reduction of asymmetry is observed in MZ myo1D; MZ myo1G double mutants. For values of dand5 asymmetry for individual display items, see Methods. rt Asymmetric spaw expression is altered in MZ myo1D; MZ myo1G double mutants. The frequency of defects is comparable to MZ myo1D single mutants (c). a, b, d, e, r, s are dorsal views of 18-somite stage embryos, anterior up. gl and np are dorsal views of the LRO, anterior up. Error bars in m and q indicate SEM. Scale bars: 50 µm in a, b, d, e, r, s; 20 µm in gl and np
