Fig. S3

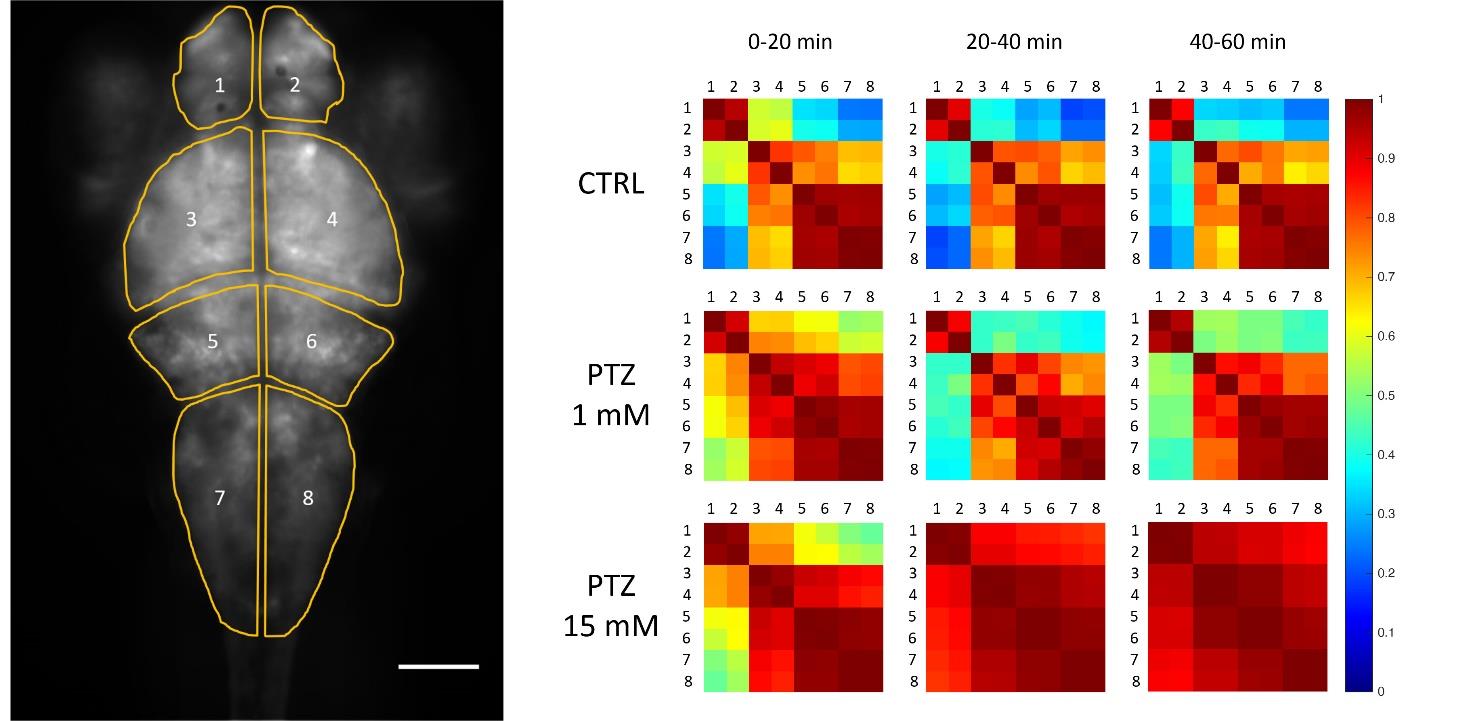

Cross-correlation maps of activity in different brain regions. Left. Regions of interest selected for analysis are shown overlaid with the fluorescence image; scale bar 100 μm. Right. Cross-correlation matrices (see Methods) measured at different time intervals during a one-hour recording in different conditions, as indicated. Each matrix shows color-coded mean correlation coefficients of three larvae, exposed to the same condition, during the same timeframe.
