Fig. 2

ID
ZDB-IMAGE-171006-23
Genes
Source
Figures for Boer et al., 2016
Figure Caption

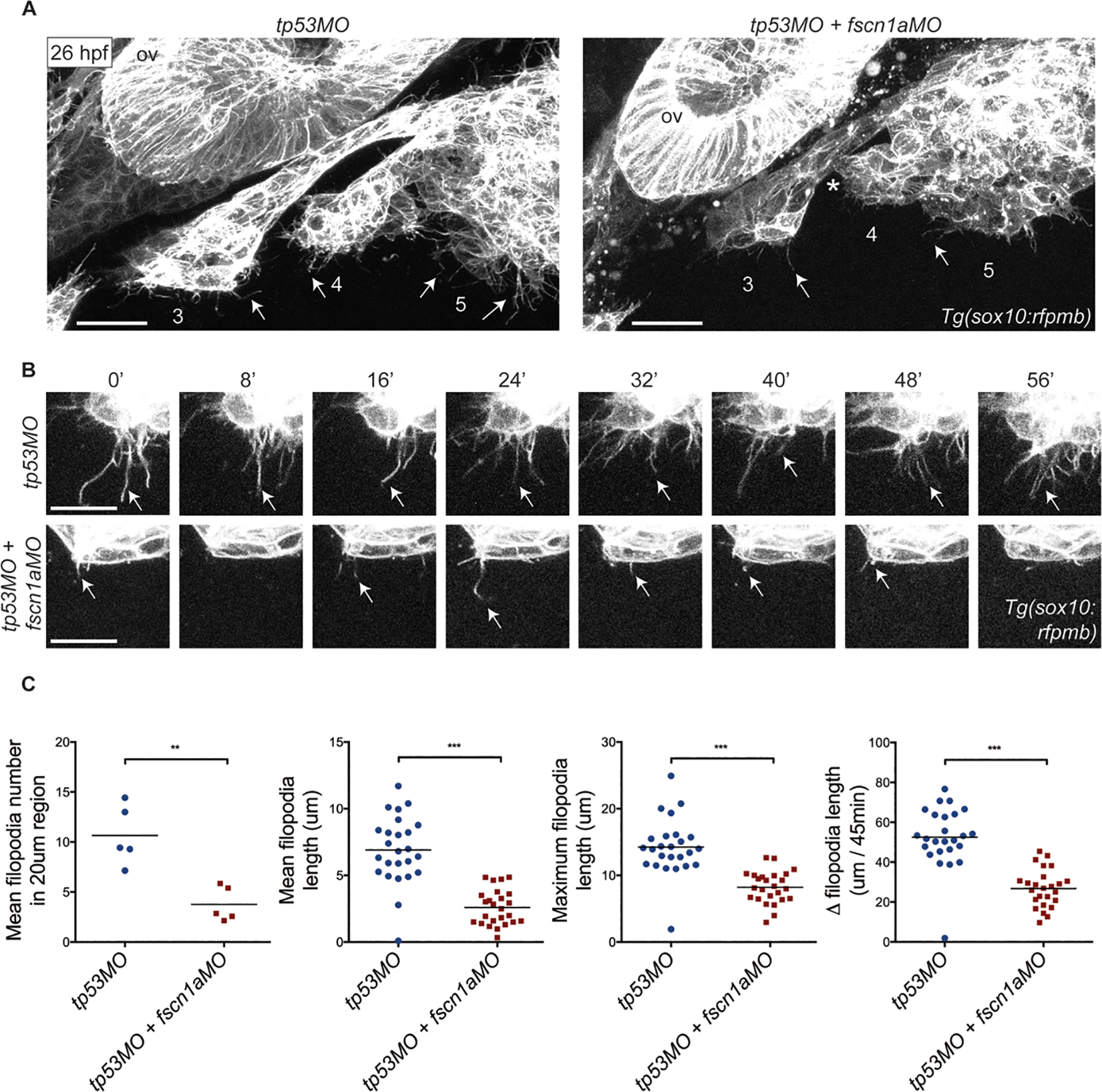

Fig. 2

fscn1aMO reduces NC-cell filopodia formation.

(A) Lateral views of posterior cranial NC streams in 26 hpf Tg(sox10:rfpmb) embryos injected with tp53MO or tp53MO plus fscn1aMO. Numbers correspond to NC streams. Arrows denote filopodia at leading edge of NC streams. Arrowheads mark RFP-positive puncta surrounding NC streams. Asterisk highlights fusion of NC streams 3 and 4 in fscn1a-morphant embryo. ov; otic vesicle. Scale bar = 50μm. (B) Time-lapse confocal images of filopodia at leading edge of NC stream 3 in 26 hpf Tg(sox10:rfpmb) embryos injected with tp53MO or tp53MO plus fscn1aMO. Arrows mark tips of single filopodia throughout the time lapse. Scale bar = 10 μm. (C) Quantitation of mean filopodia number in 20 μm region at leading edge of NC stream 3, mean filopodia length, maximum filopodia length, and change in filopodia length over 45 minutes in 26 hpf Tg(sox10:rfpmb) embryos injected with tp53MO or tp53MO plus fscn1aMO (n = 5 embryos and 25 filopodia for each condition, **p<0.005, ***p<0.001 by an unpaired t-test analysis). In all panels, anterior is to the left. At least three independent experiments were performed in this figure with similar results.

Figure Data
