Figure Caption

Fig. 4

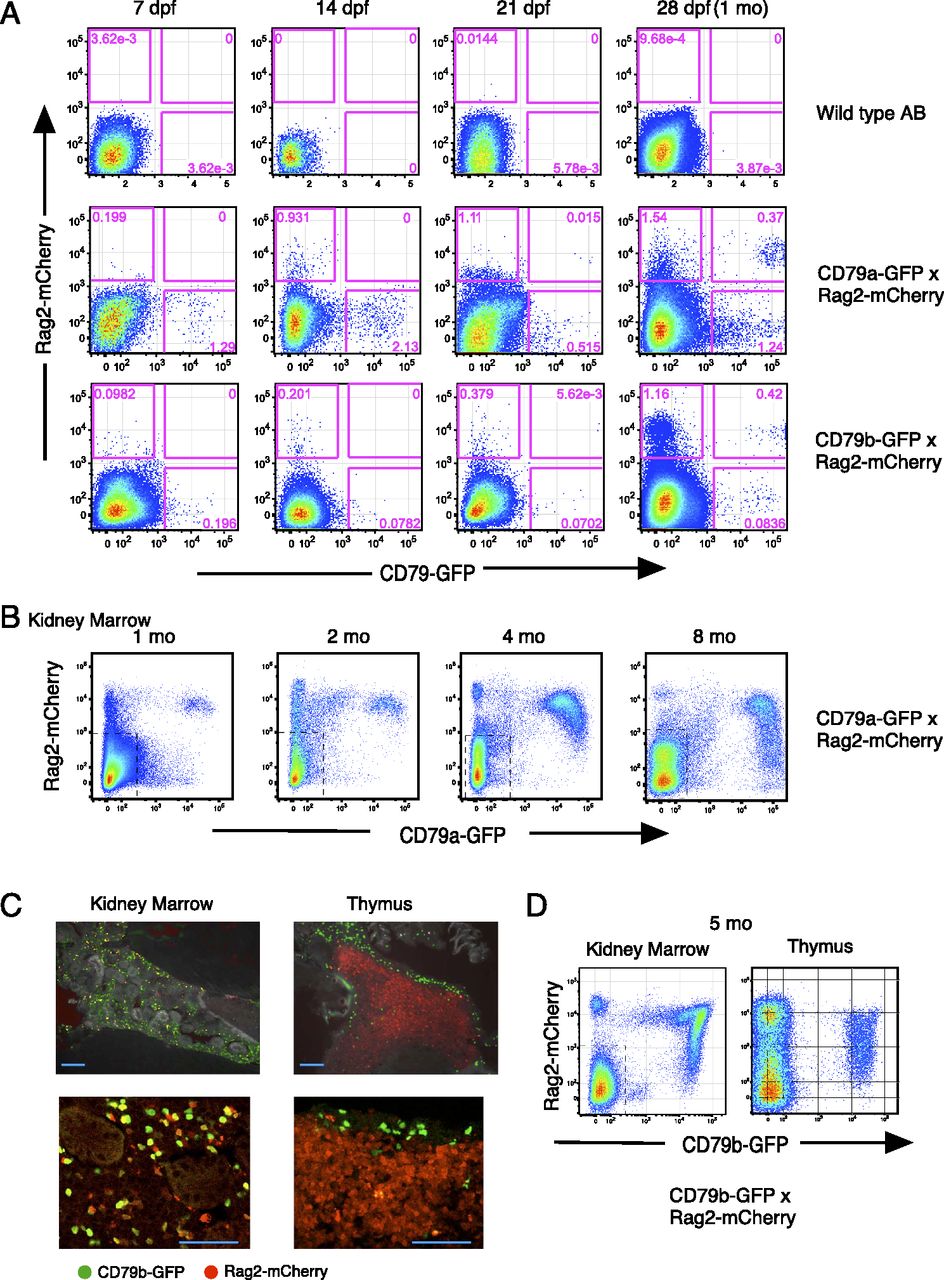

Identification of developing and mature B cells in CD79a-GFP and CD79b-GFP × Rag2-mCherry double-transgenic zebrafish. (A) B cells in young CD79a-GFP and CD79b-GFP zebrafish larvae identified by coexpression with Rag2:mCherry, analyzed by flow cytometry. Wild-type zebrafish AB line is shown as a control. Representative data of four to seven sample analyses from each day postferilization zebrafish are shown. (B) Kidney marrow of 1–8 mo CD79a-GFP × Rag2-mCherry. Dotted region is GFPmCherry. (C) Five month CD79b-GFP × Rag2-mCherry zebrafish. Low-power (top) and high-power (bottom) images of thin sections of kidney and thymus are shown. Scale bars, 200 μm (top) and 100 μm (bottom). (D) Flow cytometry analysis of adult CD79b-GFP × Rag2-mCherry zebrafish kidney and thymus. Dotted region is GFPmCherry. Frequency of CD79b:GFP+ cells in kidney is 26.4%, in thymus is 5%. Data are representative of five separate CD79b/Rag2 transgenic fish kidney analyses.
