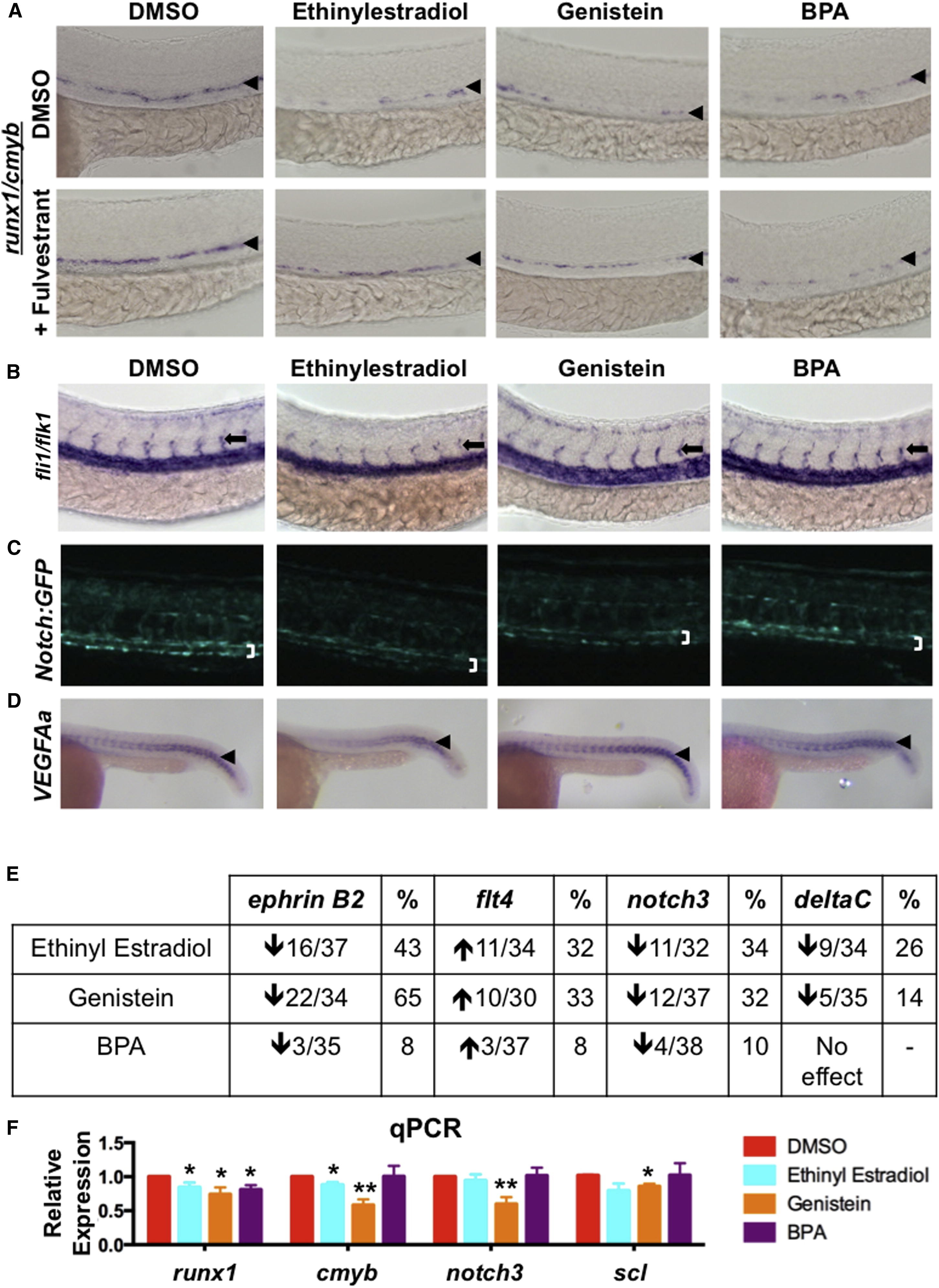

Fig. 5

Xenoestogens Partially Replicate the Effects of E2 on HSPC Formation

(A) Exposure to xenoestrogens ethinyl estradiol (EE), genistein (GEN), or Bisphenol A (BPA) decreased runx1/cmyb expression and could be partially blocked by cotreatment with FULV (n ≥ 25/treatment).

(B) Treatment with GEN reduced the expression of fli1/flk1 in the intersomitic vessels (n ≥ 25/treatment); an arrow points to ISVs.

(D) VEGFAa was noticeably decreased by EE (15/26); arrowheads indicate somite region.

(E) Summary of changes in the expression of markers of vascular identity ephrinB2, flt4, notch3, and deltaC following treatment with XEs (n ≥ 25).

(F) qPCR confirmed decreases in runx1, cmyb notch3, and scl by XE exposure (mean of triplicate experiments ± SEM; one-tailed t test ^∗p < 0.05; ^∗∗p < 0.01).
