Fig. 4

ID
ZDB-IMAGE-161229-11
Genes
Source
Figures for Venero Galanternik M. et al., 2016
Figure Caption

Fig. 4

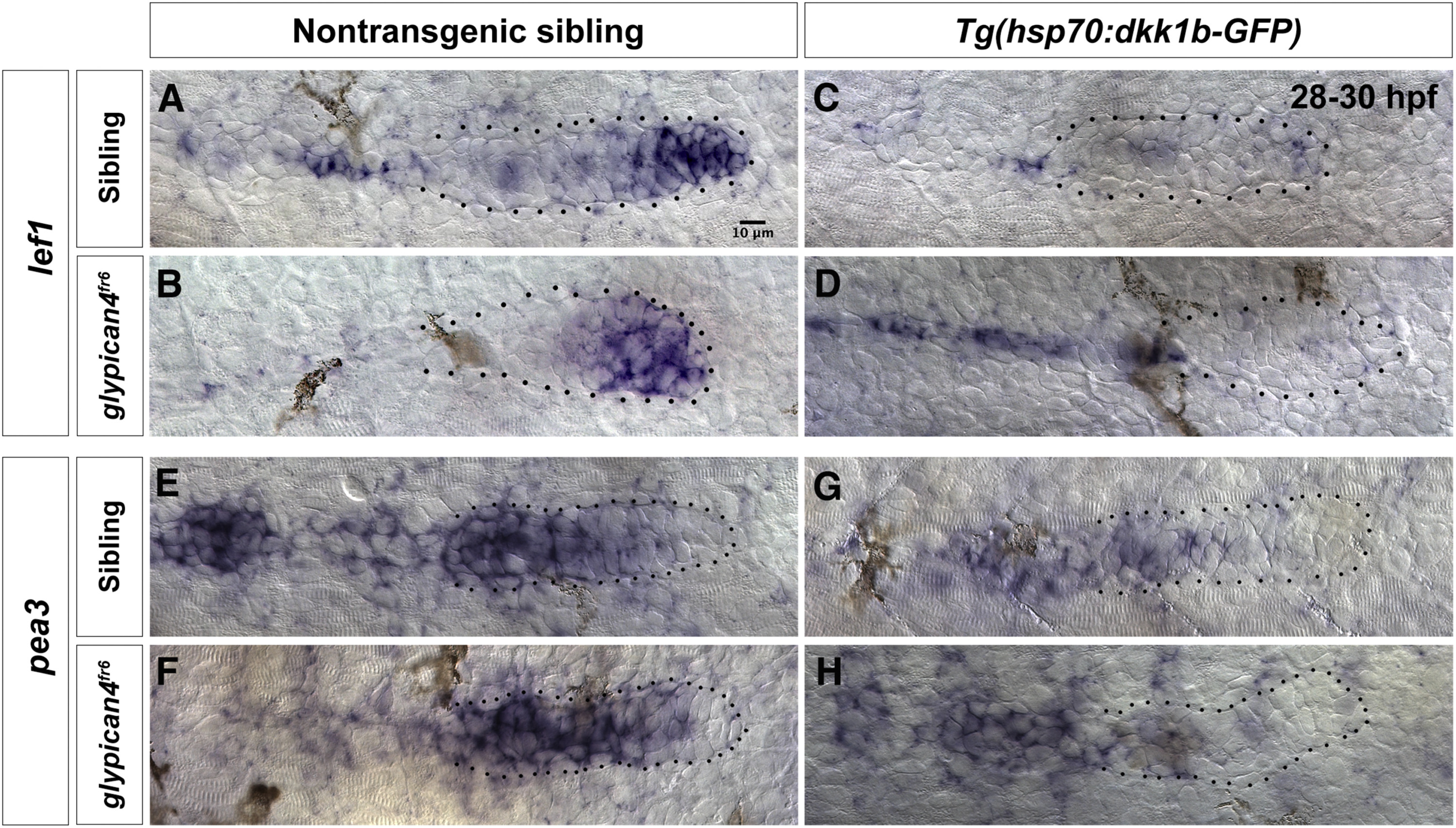

Dkk1b is able to inhibit Wnt/β-catenin and Fgf signaling in the absence of glypican4. (A-D) Expression of the Wnt/β-catenin target lef1 in non-transgenic siblings (A) and glypican4fr6 mutants (B) in the leading region of the primordium. (C-D) After heat shock, 28–30 hpf transgenic siblings (C) and glypican4fr6 mutants (D) lose expression of lef1 indicating that Dkk1b is functional and inhibits Wnt target genes. (E-H) The Fgf target pea3 is expressed in the trailing region of the primordium in non-transgenic control siblings (E) and glypican4fr6 mutants (F) and is downregulated after induction of Dkk1-GFP in both backgrounds indicating that the inhibition of Wnt targets results in the loss of Fgf signaling (G-H).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 419(2), Venero Galanternik M., Lush, M.E., Piotrowski, T., Glypican4 Modulates Lateral Line Collective Cell Migration Non Cell-Autonomously, 321-335, Copyright (2016) with permission from Elsevier. Full text @ Dev. Biol.
