Fig. S2

ID
ZDB-IMAGE-161028-40
Genes
Source
Figures for Chen et al., 2013
Figure Caption

Fig. S2

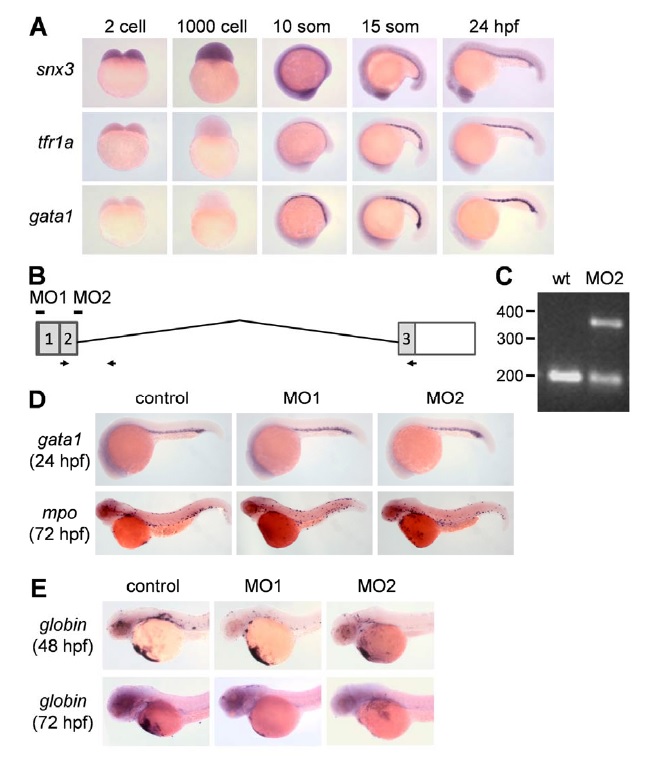

Morpholino-mediated knockdown of snx3 in zebrafish embryos specifically impairs heme production and erythroid lineage differentiation. (A) The expression profile of snx3 in different stages of early zebrafish embryos. snx3 zygotic transcripts are enriched in the ventral blood islands (intermediate cell mass, ICM) from around 10-somite stage, a pattern similar to that of tfr1a. In contrast to tfr1a, snx3 is expressed as a maternal transcript between 2- and 1000-cell stages. The erythroid transcription factor gata1 is presented as a control for primitive hematopoiesis. (B) MO1 and MO2 were designed to target the translational initiation site and the second exonintron boundary in snx3, respectively. (C) RT-PCR using primer set shown in panel (B) confirmed the presence of altered snx3 mRNA spliceforms in zebrafish embryos injected with MO2. (D) Whole-mount in situ hybridization indicated that initial specification of erythropoiesis (gata1) and myelopoiesis (myeloperoxidase or mpo) was not affected in the snx3 morphants. (E) Whole-mount in situ hybridization in snx3-morphant embryos showed normal and reduced expression of βe1-globin at 48 hpf and 72 hpf, respectively.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Cell Metabolism, 17(3), Chen, C., Garcia-Santos, D., Ishikawa, Y., Seguin, A., Li, L., Fegan, K.H., Hildick-Smith, G.J., Shah, D.I., Cooney, J.D., Chen, W., King, M.J., Yien, Y.Y., Schultz, I.J., Anderson, H., Dalton, A.J., Freedman, M.L., Kingsley, P.D., Palis, J., Hattangadi, S.M., Lodish, H.F., Ward, D.M., Kaplan, J., Maeda, T., Ponka, P., and Paw, B.H., Snx3 Regulates Recycling of the Transferrin Receptor and Iron Assimilation, 343-352, Copyright (2013) with permission from Elsevier. Full text @ Cell Metab.
